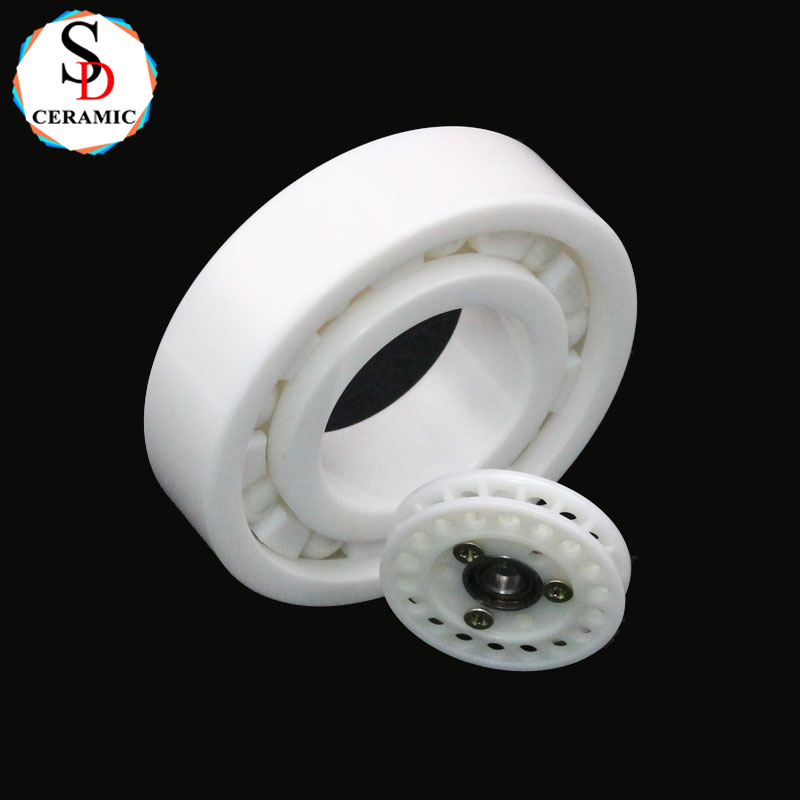

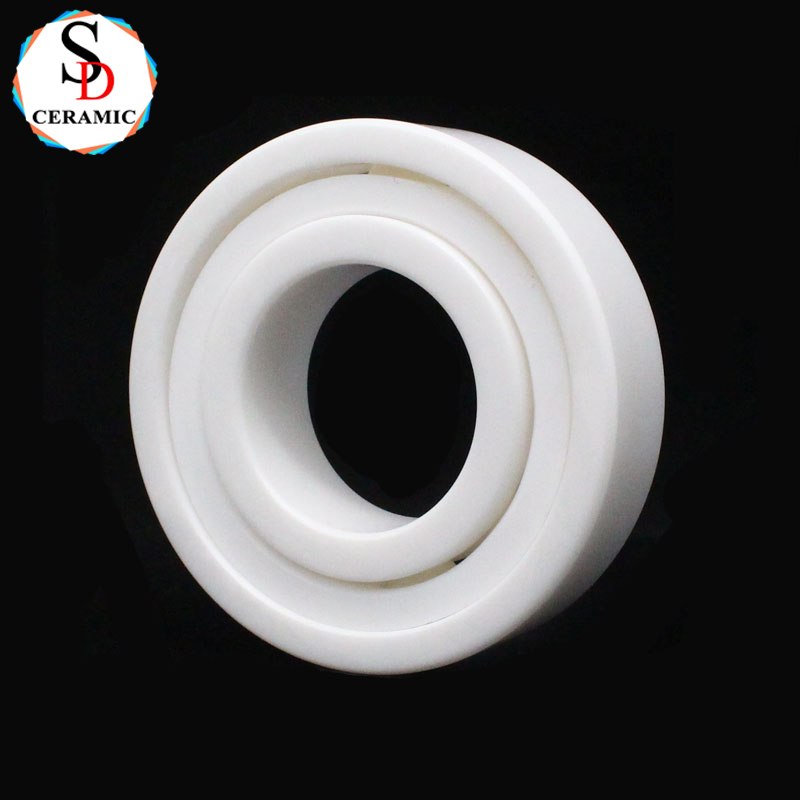

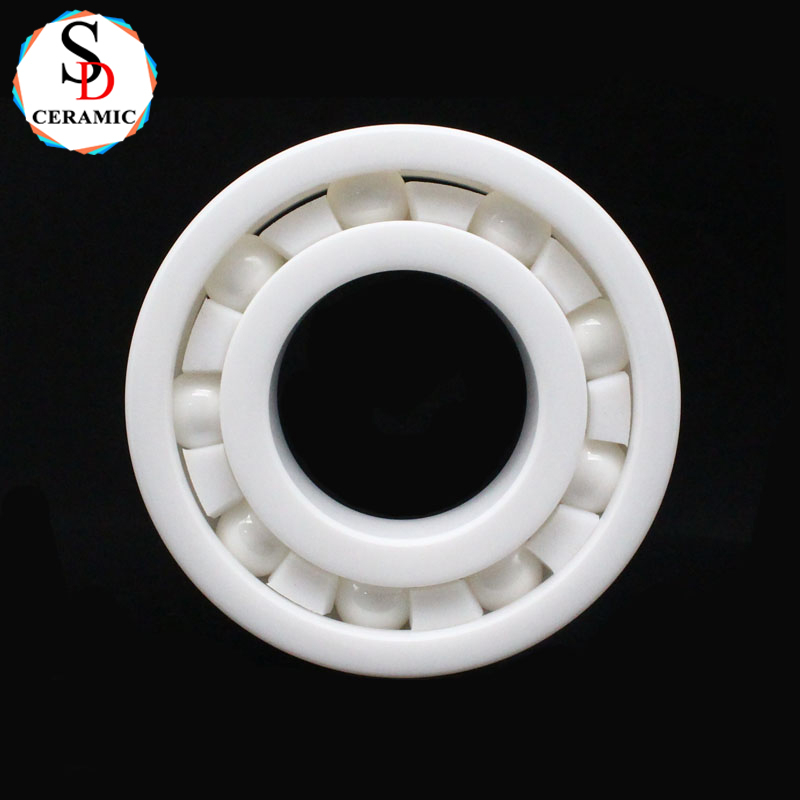

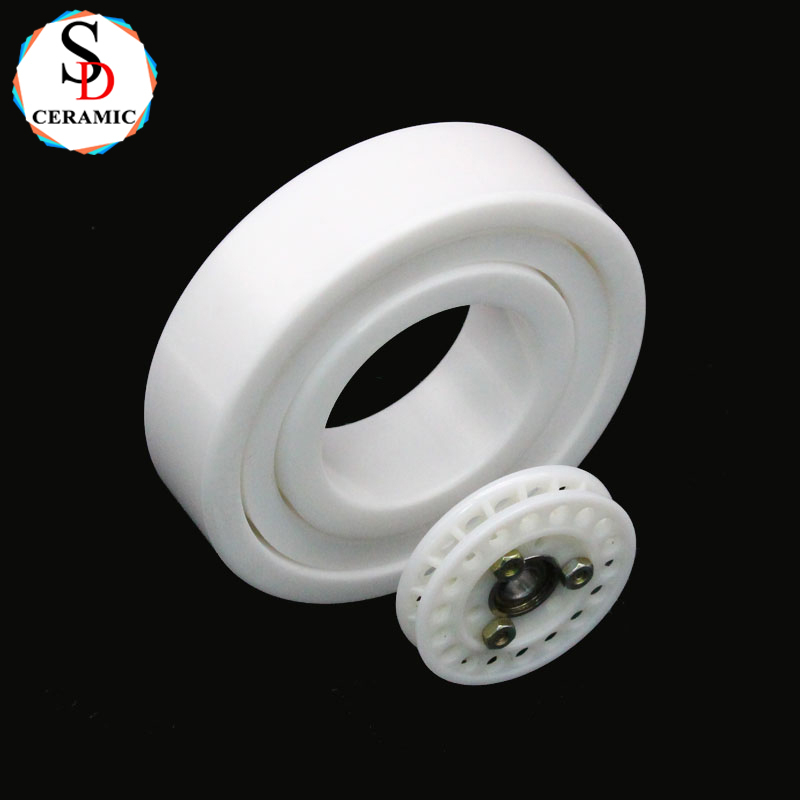

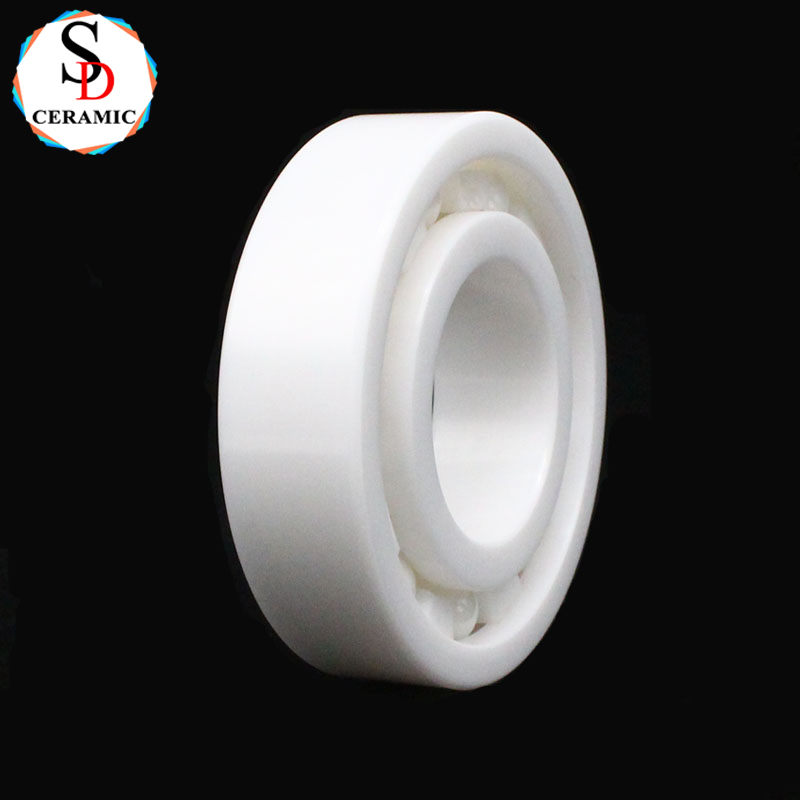

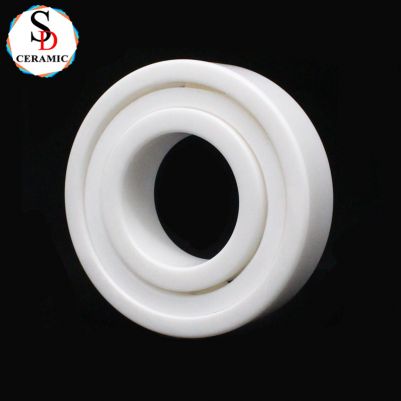

High-Speed High Temperature Ceramic Ball Bearing Zirconia Insulator with High Quality

► Place of Origin: Jiangsu, China

► Material: Zirconia

► Density: 6g/cm³

► Max use temperature: 1500℃

► Contract Manufacturing: OEM Service Offered

Inquire Now

Product Introduction

Our zirconia ceramic single-row ball bearings represent the pinnacle of high-temperature, high-speed bearing technology. Engineered from high-purity ZrO₂ (zirconia), these premium bearings deliver exceptional thermal stability, electrical insulation, and corrosion resistance - making them ideal for applications where conventional steel bearings fail. With capabilities to withstand temperatures up to 800°C (1472°F) and operate at speeds 50% higher than steel equivalents, our ceramic bearings are revolutionizing performance in aerospace, semiconductor, and high-temperature processing industries.

	Key Product Advantages	Industry Applications
	▸ Ultra-High Temperature Resistance ▸ Exceptional Electrical Insulation ▸ Corrosion Immunity ▸ Lightweight Construction ▸ Maintenance-Free Operation ▸ Non-Magnetic Properties	▸ Aerospace & Defense ▸ Semiconductor Manufacturing ▸ Medical & Laboratory Equipment ▸ Energy & Power Generation ▸ Food & Pharmaceutical Processing

High-Speed High Temperature Ceramic Ball Bearing Zirconia Insulator with High Quality

Production process

1. Grind and crush the raw materials to be slurry or powder

2. se-different method to making the slurry or powder into semi-finished products

3. Put the semi-finished products into the kiln for dewaxing and sintering;

4. After forming and sintering, Ceramic Sleeves products can also be processed by subsequent CNC precision machining according to the drawing requirements. Then Q/C test.

5. Finally package Ceramic Sleeves by bubble paper or cartons and place it on tray for delivery

Company

Strong Heat Resistance Al2o3 Alumina Ceramic Boat Crucible for Melting

Yixing Shengda Refractory Ceramic Co, Ltd. was established in Yixing City, China in 1995, witha production area of over 10,000m2. lt is an enterprise specializing in the production of aluminaceramic,zirconia ceramic,slicon nitride, silicon carbide and other precision ceramic products.

And we also produce ceramic band heaters, ceramic terminal block, cordierite and mullite ceramic parts an other ceramic products.

Certifications

95 alumina substrate

Packaging and shipping

95 alumina substrate

Technical Parameters

Properties	Units	Cordierite Ceramic	Mullite Ceramic	95%Alumina Ceramic	99%Alumina Ceramic	Silicon Nitride	Zirconia Ceramic
Colour		Yellow	White	White	Light yellow	Black	White
Density	g/cm3	1.9	2.6	3.6	3.8	3.2	6
Flexural Strength	Mpa	30	120	300	350	800	1100
Compressive Strength	MPa	350	500	2500	2800	2600	3000
Modulus of Elasicity(20℃）	Gpa	40	100	300	350	290	320
Max Use Temperature	°C	1200	1300	1400	1500	1300	1050
Thermal Condutivity	W(m.K)	1.3-1.8	2~6	20	30	25	3
Thermal Expansion Cofficient	10-6/°C	2.5-3	2.5-3	7.5	8	3	10
Thermal Shock Resistance	△T℃	300	150	140	150	600	250
Dielectric Strength	KV/mm	-	-	15	18	14	15
Dielectric Constant	Er	8	8	9	9.2	9	26

Promotional Good Quality 99 Alumina Ceramic Pipe Tubes Insulated Thermocouple Al2o3 Ceramic Stick

FAQ

Q: Do you have the products in stock?

A: Some standard produce have in stock, such as ceramic band heater insulator; bobbin heater insulator and ceramic connector. But it needs to check according to your requirement.

Q: How do you pack the goods?

A: Our standard packaging is carton, we can customize it as per your requirement as well.

Q: How many days do you finish the sample?

A: Usually 15 business days (Including 8days for making furnaces and 7days for producing samples)
