Technical Ceramics in Solar Energy Applications

Technical Ceramics in Solar Energy Applications

Technical ceramics, known for their exceptional thermal, mechanical, and chemical stability, are increasingly critical in advancing solar energy technologies. Their unique properties enable efficient energy conversion, durability in harsh environments, and cost-effective solutions across photovoltaic (PV) and concentrated solar power (CSP) systems.

1. Photovoltaic Systems

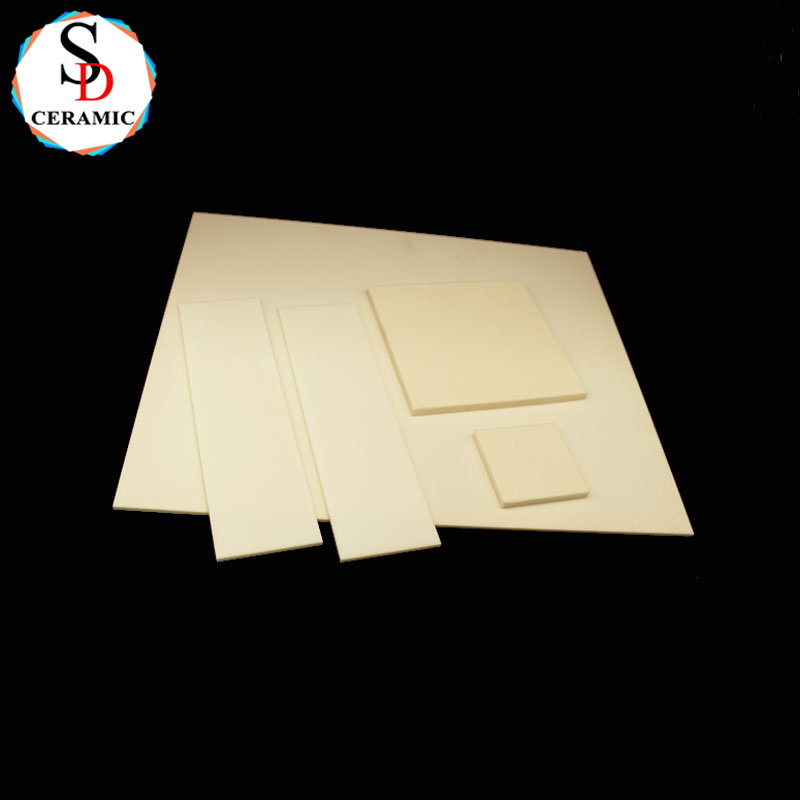

In PV applications, ceramics like alumina (Al₂O₃) and zirconia (ZrO₂) serve as insulating substrates, protective coatings, and encapsulation materials. Alumina substrates support thin-film solar cells by providing electrical insulation and thermal management, ensuring stable performance under high temperatures. Ceramic coatings also shield PV panels from abrasion, moisture, and UV degradation, extending their lifespan.

2. Concentrated Solar Power (CSP)

CSP systems rely on ceramics for high-temperature components. Silicon carbide (SiC) and silicon nitride (Si₃N₄) are used in solar receivers and heat exchangers due to their ability to withstand extreme temperatures (>1000°C) and corrosive molten salts. These materials enhance thermal efficiency by minimizing heat loss and enabling higher operating temperatures, which boosts energy conversion rates.

3. Thermal Energy Storage

Technical ceramics play a role in thermal storage systems, particularly in ceramic phase-change materials (PCMs). For instance, alumina-silicate ceramics store excess heat in CSP plants, releasing it during low sunlight periods. Their high heat capacity and structural integrity ensure consistent energy output.

4. Solar Hydrogen Production

Ceramics like titania (TiO₂) are used in photocatalytic water-splitting systems to produce hydrogen. TiO₂-based ceramics act as catalysts under sunlight, enabling sustainable hydrogen generation with minimal environmental impact.

Challenges and Innovations

Despite their advantages, high production costs and brittleness limit widespread adoption. Research focuses on developing nanostructured ceramics and composite materials to enhance toughness and reduce costs. Additive manufacturing (3D printing) is also being explored to create complex ceramic components with minimal waste.

Conclusion

Technical ceramics are pivotal in overcoming efficiency and durability barriers in solar technologies. As material science advances, their role in enabling cleaner, more efficient solar energy systems will expand, supporting global renewable energy goals.
