► Place of Origin: Jiangsu, China
► Material: Steatite
► Density: 2.7g/cm³
► Max use temperature: 800℃
► Contract Manufacturing: OEM Service Offered
Product Introduction

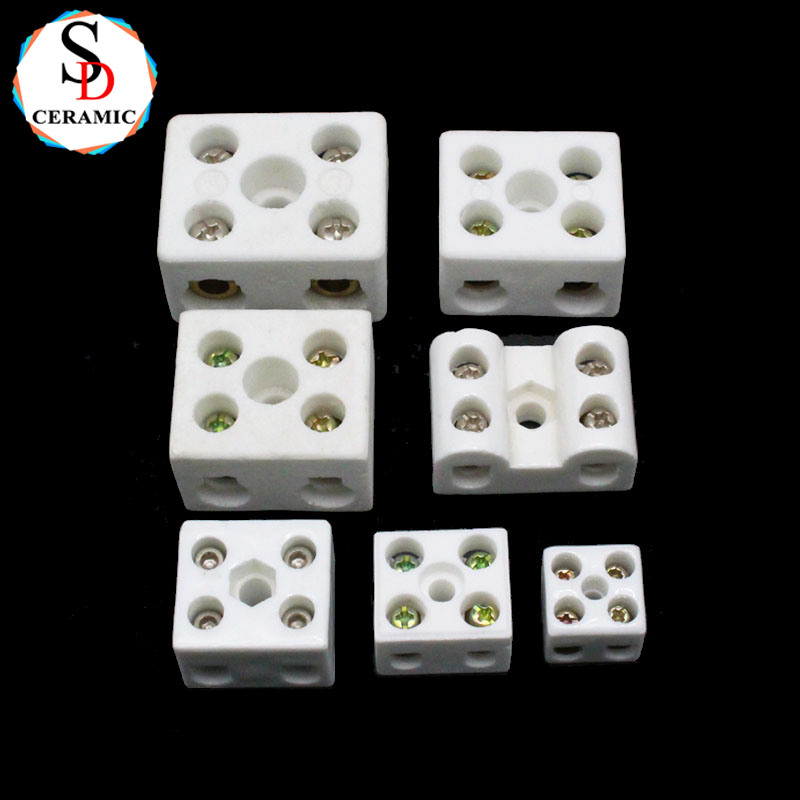

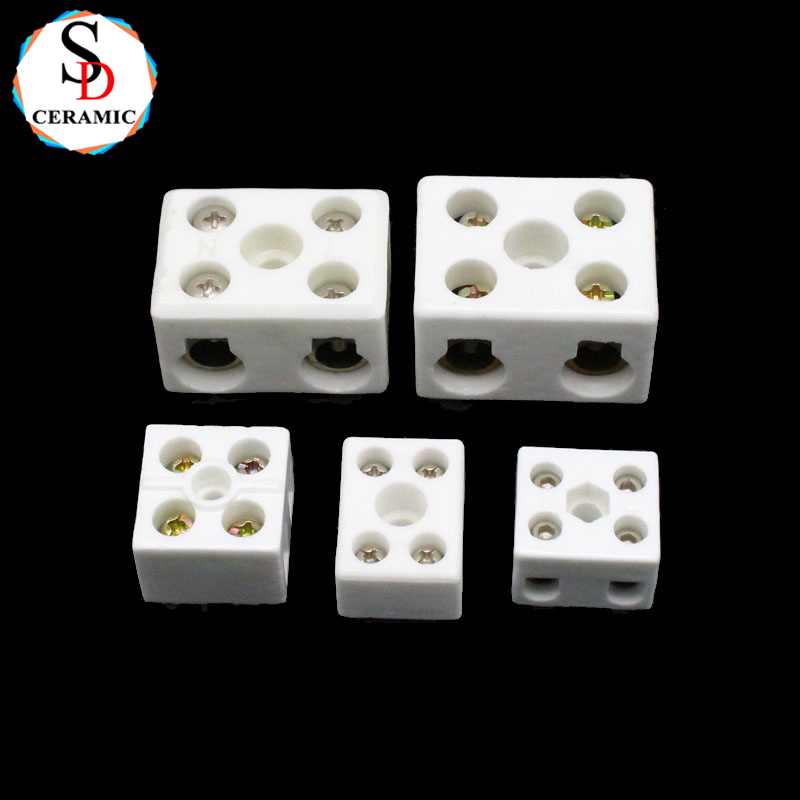

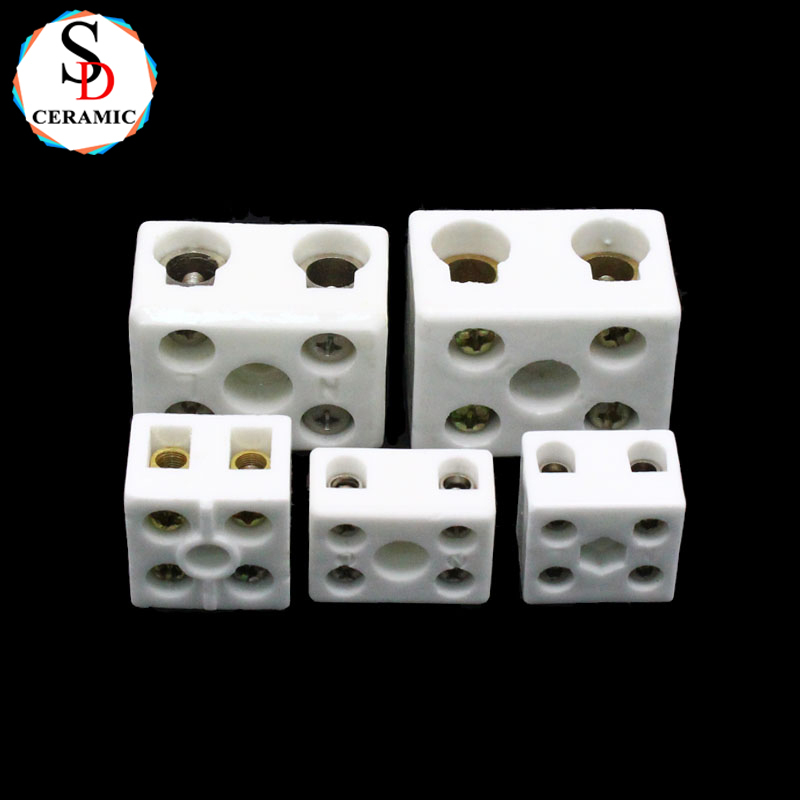

Our steatite ceramic terminal block connectors represent the gold standard in high-temperature electrical insulation, specifically engineered for high-frequency applications and extreme thermal conditions. These precision ceramic components deliver exceptional dielectric strength, thermal stability, and mechanical durability in demanding industrial settings where conventional materials fail.
| Key Product Advantages | Industry Applications | ||
▸ Ultra-High Dielectric Strength ▸ Superior Thermal Endurance ▸ Excellent High-Frequency Performance ▸ Zero Moisture Absorption ▸ Mechanical Robustness ▸ Chemical Resistance | ▸Thermocouple & Temperature Sensing Systems ▸ Industrial Heating & Refractory Applications ▸ Power Generation & Energy Sector ▸ Automotive & Aerospace Testing ▸ Specialized Manufacturing |
 |  |  |
Production process
1. Grind and crush the raw materials to be slurry or powder
2. se-different method to making the slurry or powder into semi-finished products
3. Put the semi-finished products into the kiln for dewaxing and sintering;
4. After forming and sintering, Ceramic Sleeves products can also be processed by subsequent CNC precision machining according to the drawing requirements. Then Q/C test.
5. Finally package Ceramic Sleeves by bubble paper or cartons and place it on tray for delivery
Company
 |
Yixing Shengda Refractory Ceramic Co, Ltd. was established in Yixing City, China in 1995, witha production area of over 10,000m2. lt is an enterprise specializing in the production of aluminaceramic,zirconia ceramic,slicon nitride, silicon carbide and other precision ceramic products.
And we also produce ceramic band heaters, ceramic terminal block, cordierite and mullite ceramic parts an other ceramic products.
Certifications
Packaging and shipping
Technical Parameters
| Properties | Units | Cordierite Ceramic | Mullite Ceramic | 95%Alumina Ceramic | 99%Alumina Ceramic | Silicon Nitride | Zirconia Ceramic |
| Colour | Yellow | White | White | Light yellow | Black | White | |
| Density | g/cm3 | 1.9 | 2.6 | 3.6 | 3.8 | 3.2 | 6 |
| Flexural Strength | Mpa | 30 | 120 | 300 | 350 | 800 | 1100 |
| Compressive Strength | MPa | 350 | 500 | 2500 | 2800 | 2600 | 3000 |
| Modulus of Elasicity(20℃） | Gpa | 40 | 100 | 300 | 350 | 290 | 320 |
| Max Use Temperature | °C | 1200 | 1300 | 1400 | 1500 | 1300 | 1050 |
| Thermal Condutivity | W(m.K) | 1.3-1.8 | 2~6 | 20 | 30 | 25 | 3 |
| Thermal Expansion Cofficient | 10-6/°C | 2.5-3 | 2.5-3 | 7.5 | 8 | 3 | 10 |
| Thermal Shock Resistance | △T℃ | 300 | 150 | 140 | 150 | 600 | 250 |
| Dielectric Strength | KV/mm | - | - | 15 | 18 | 14 | 15 |
| Dielectric Constant | Er | 8 | 8 | 9 | 9.2 | 9 | 26 |
FAQ
Q: Do you have the products in stock?
A: Some standard produce have in stock, such as ceramic band heater insulator; bobbin heater insulator and ceramic connector. But it needs to check according to your requirement.
Q: How do you pack the goods?
A: Our standard packaging is carton, we can customize it as per your requirement as well.
Q: How many days do you finish the sample?
A: Usually 15 business days (Including 8days for making furnaces and 7days for producing samples)
