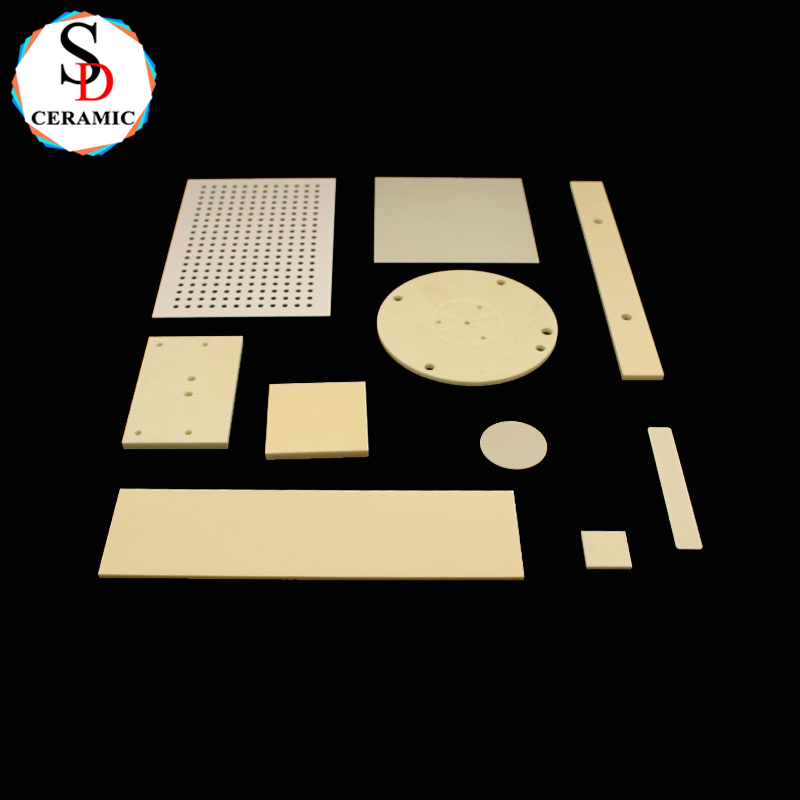

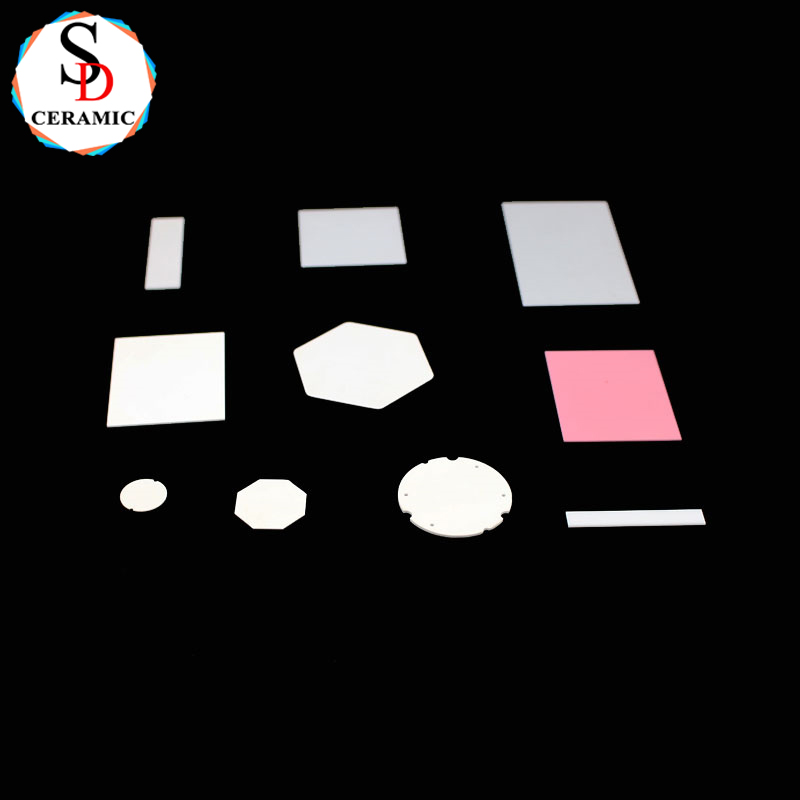

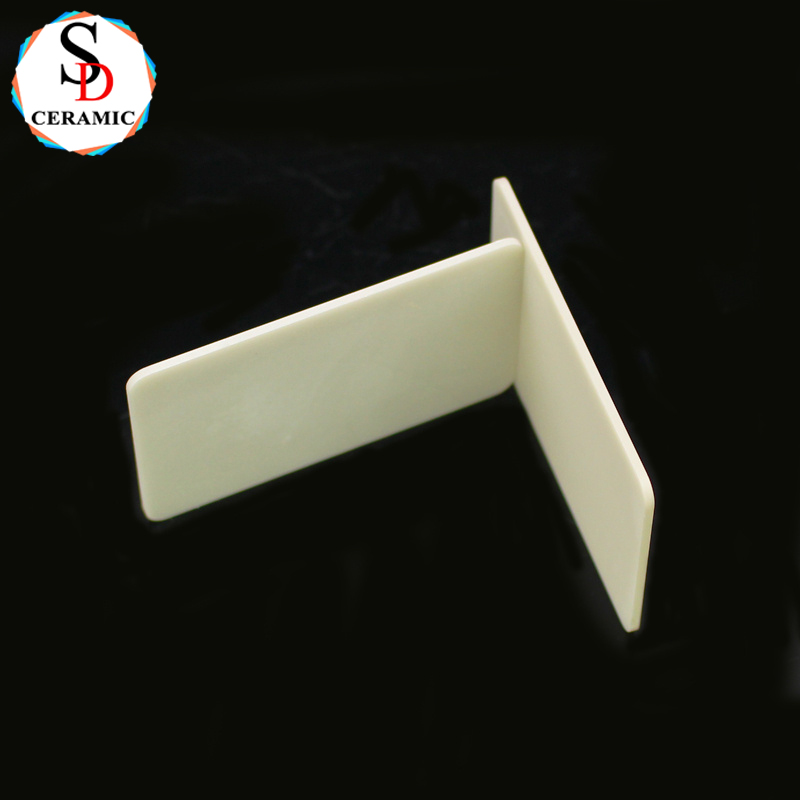

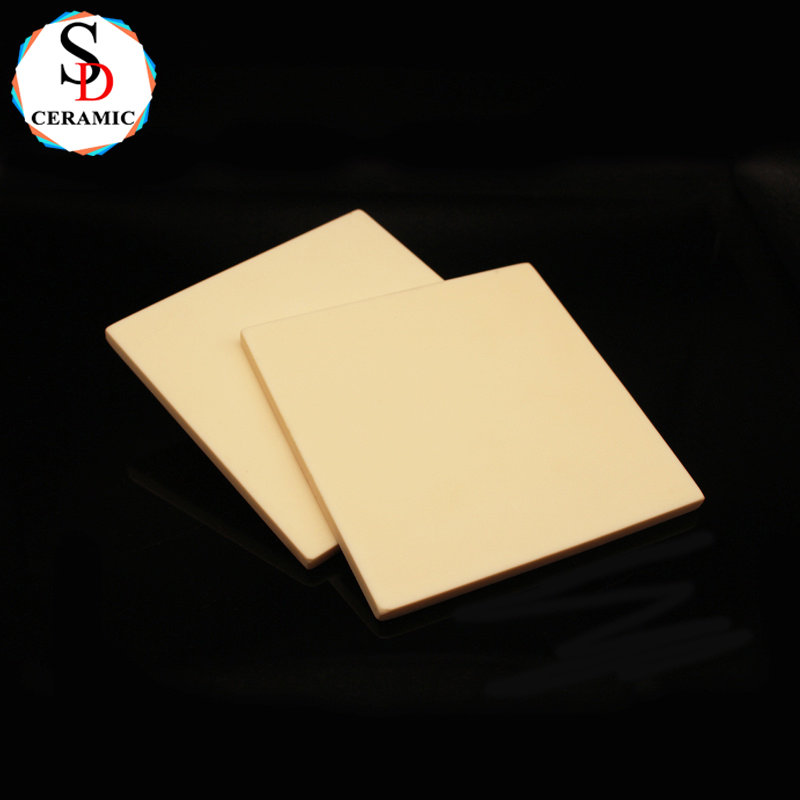

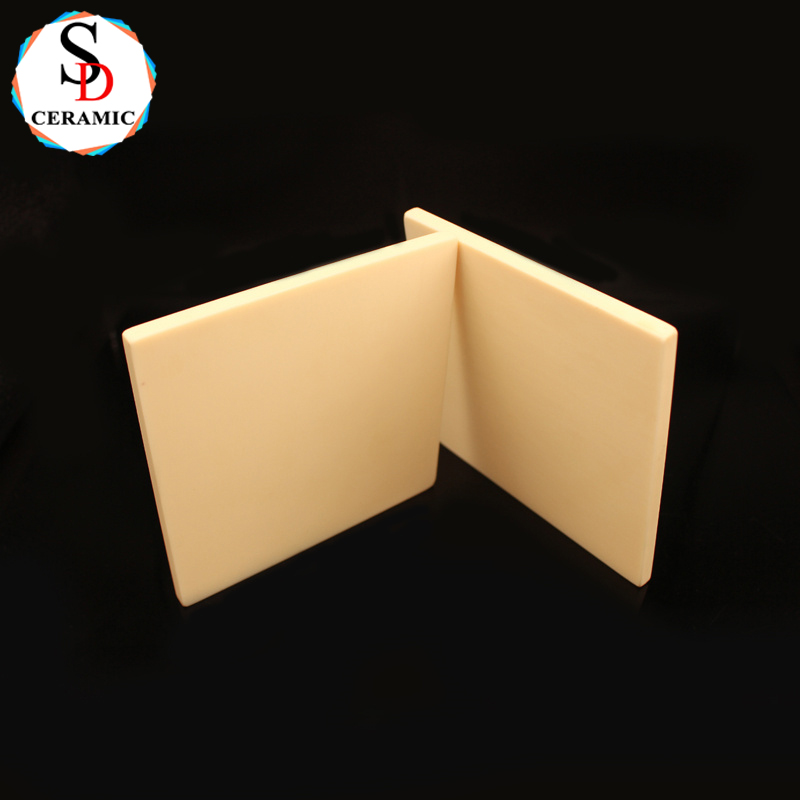

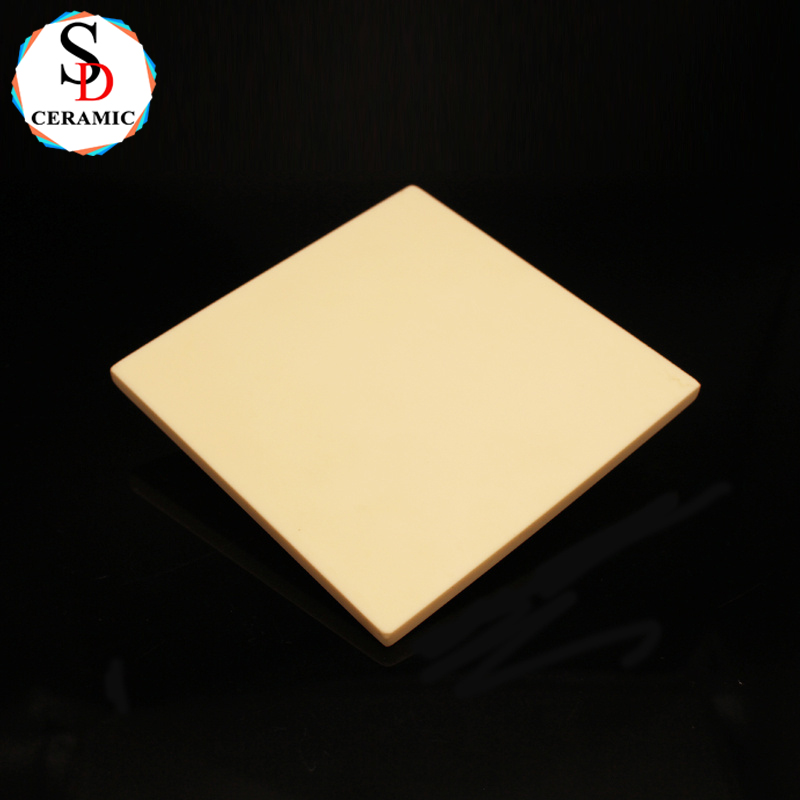

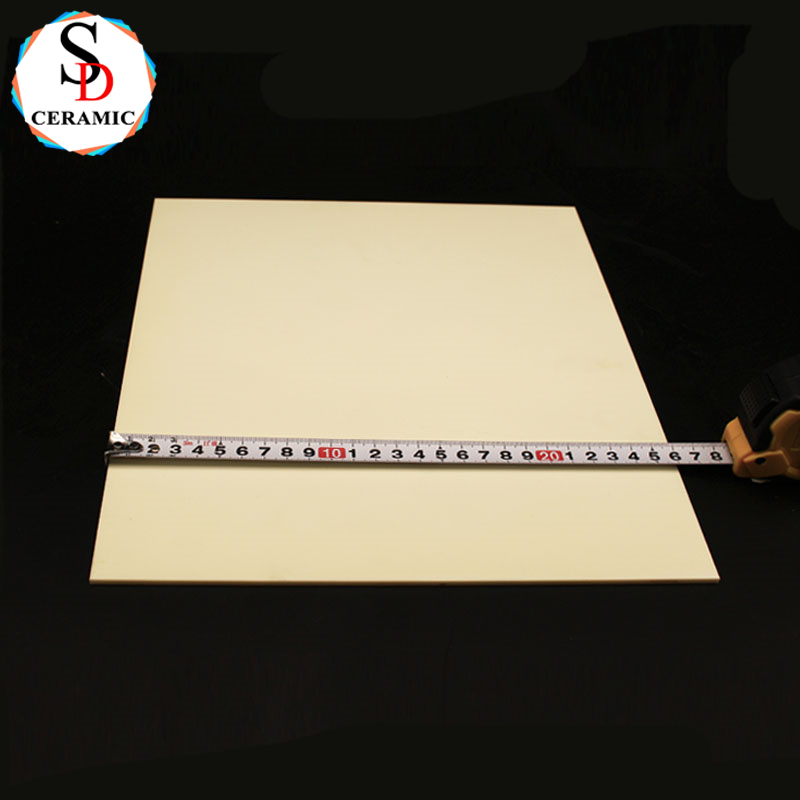

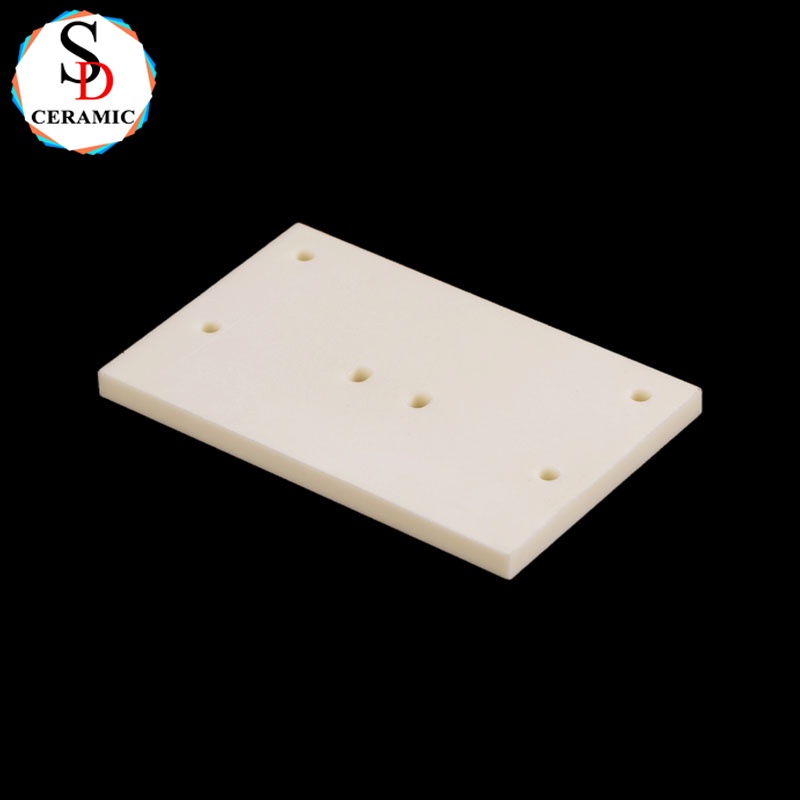

Heat Resistant Ceramic Insulator Alumina Ceramic Sheets For Demandinf Applications

Heat Resistant Ceramic Insulator Alumina Ceramic Sheets For Demandinf Applications

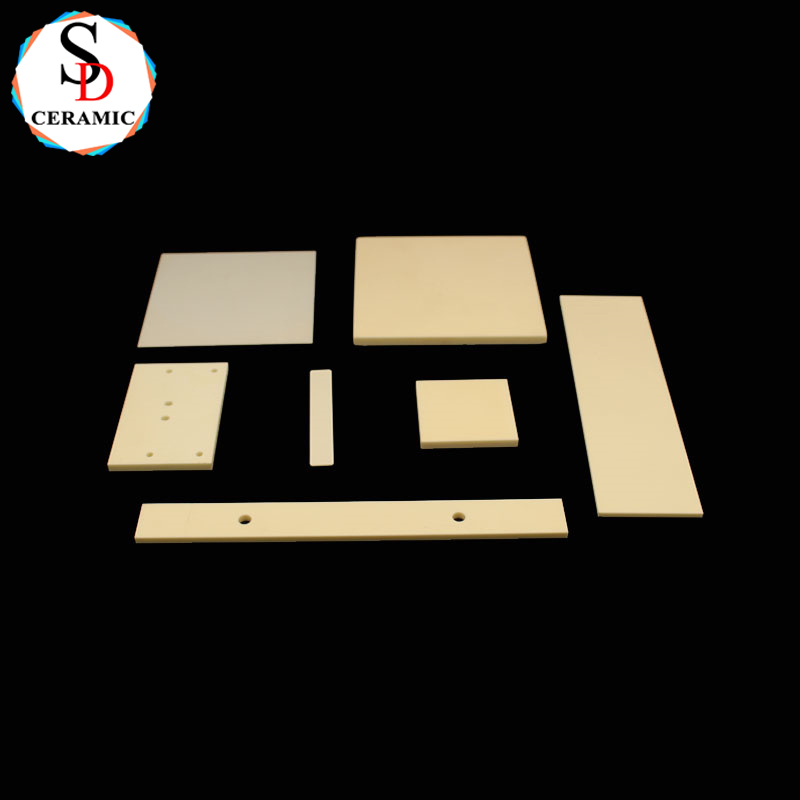

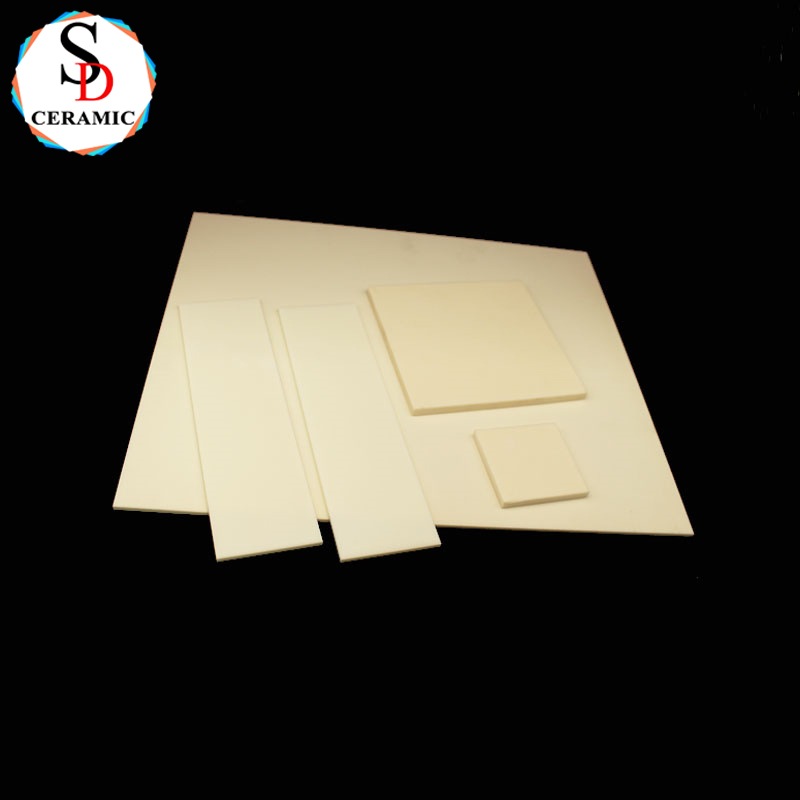

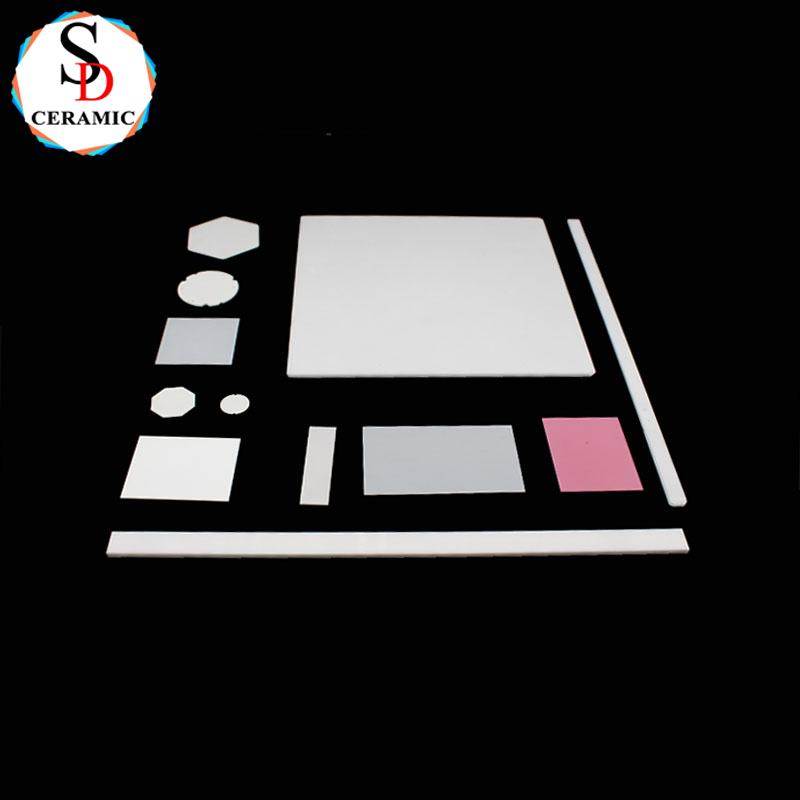

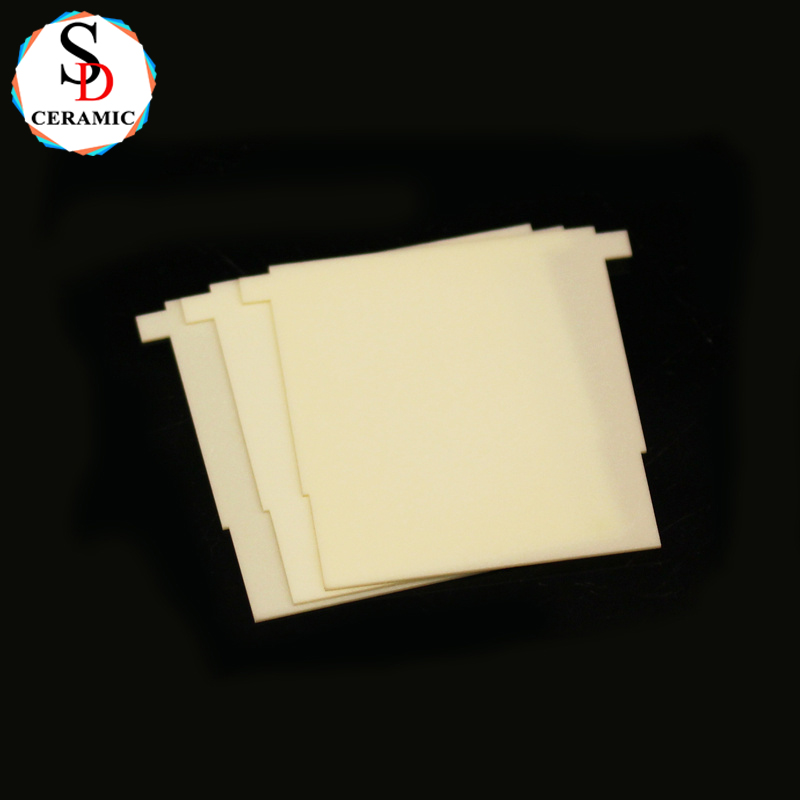

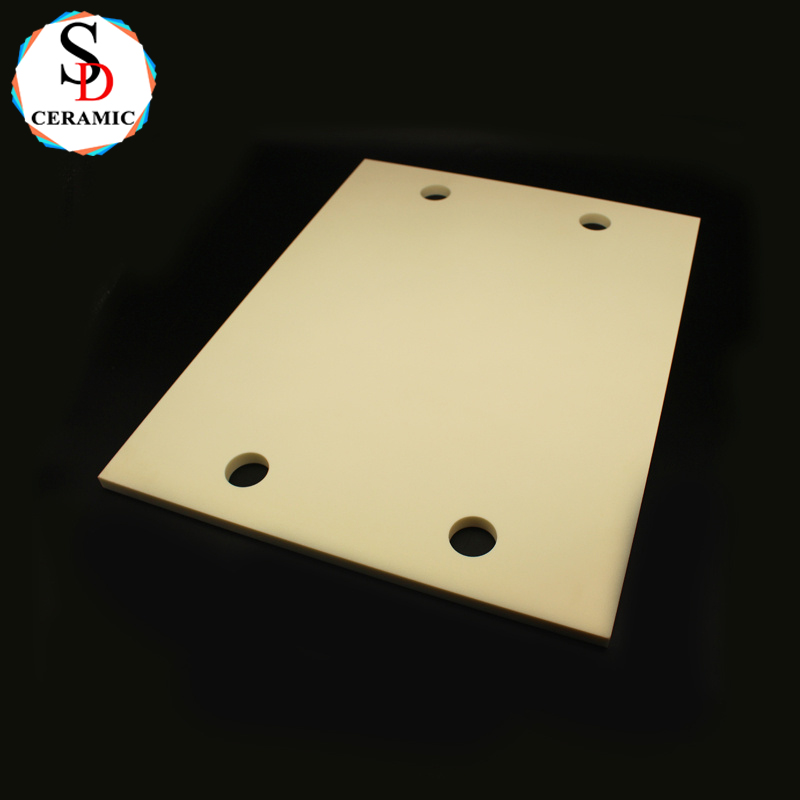

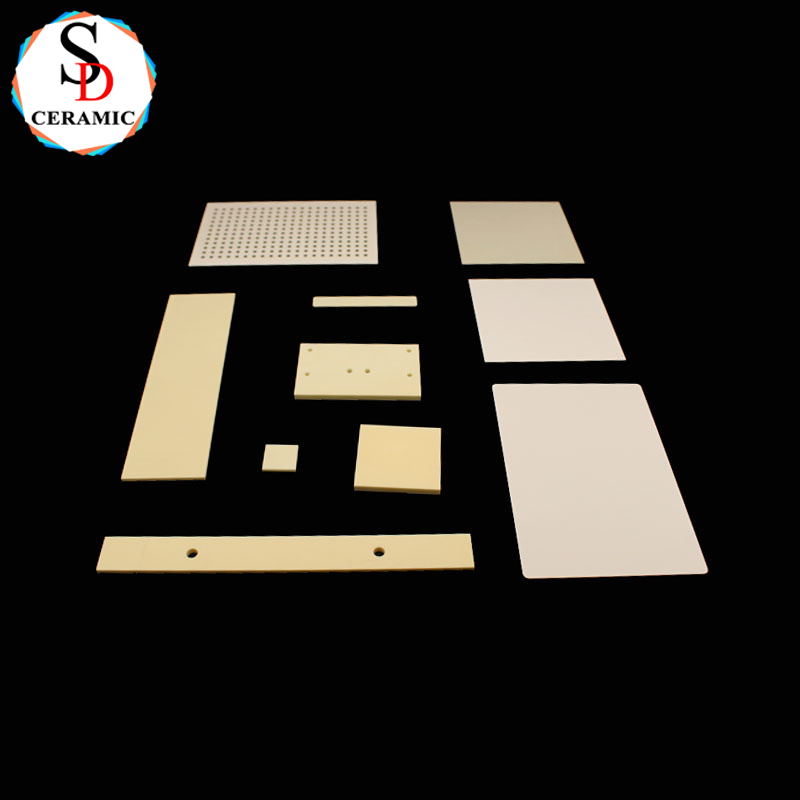

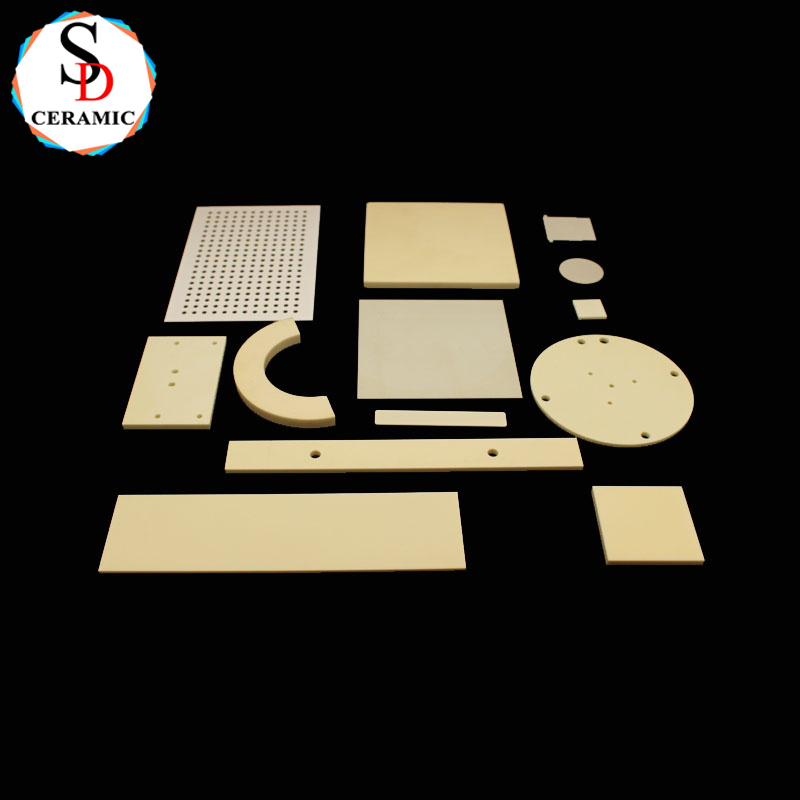

Alumina ceramic sheets, renowned for their exceptional heat resistance, electrical insulation, and durability, are revolutionizing industries that operate under extreme conditions. As versatile heat-resistant ceramic insulators, these advanced alumina ceramic components are engineered to withstand temperatures exceeding 1650°C while maintaining structural integrity and performance. This guide explores their technical specifications, real-world applications, and strategies to optimize your webpage for search engines.

Technical Specifications: Why Alumina Ceramic Sheets Excel

Alumina ceramic sheets (Al₂O₃) are crafted from high-purity aluminum oxide, tailored to meet rigorous industrial standards. Key parameters include:

1)Thermal Performance:

●Heat Resistance: Operating range from -200°C to 1650°C, ideal for furnace linings, aerospace components, and thermal barriers.

●Thermal Conductivity: 25–30 W/m·K (superior to silicone or polymers), enabling efficient heat dissipation in electronics.

2)Electrical & Mechanical Properties:

●Dielectric Strength: Up to 33 kV/mm (99.7% purity), critical for high-voltage insulators and circuit substrates.

●Hardness & Wear Resistance: Mohs hardness of 9, bending strength ≥350 MPa, outperforming steel in abrasive environments.

3)Chemical Stability:

●Resists corrosion from acids, alkalis, and organic solvents, making them ideal for chemical processing equipment.

4)Customization Options:

●Available in purities (95%, 99%, 99.7%), thicknesses (0.5–30 mm), and surface finishes (polished, laser-cut, or coated).

Industry Applications: Real-World Case Studies

1. Electronics & Energy

●5G & RF Devices: Alumina ceramic sheets serve as low-loss substrates for 5G antennas, reducing signal interference with dielectric constants of 9.8–10.1.

●High-Power LED Cooling: Used as thermally conductive insulators in LED modules, slashing junction temperatures by 25% and extending lifespan.

2. Aerospace & Automotive

●Rocket Engine Insulation: NASA-grade alumina ceramic sheets line combustion chambers, enduring 1600°C exhaust gases without deformation.

●EV Battery Protection: Heat-resistant ceramic insulators shield battery packs from thermal runaway, meeting UL 94 V-0 fire safety standards

3. Industrial Manufacturing

●Steel Mill Wear Plates: Alumina ceramic sheets protect conveyor systems in steel plants, reducing downtime by 40% compared to steel plates

●Semiconductor Wafer Handling: Non-conductive, static-free sheets prevent contamination in cleanroom environments.

4. Medical & Chemical

●MRI Equipment Insulation: Alumina’s non-magnetic properties ensure zero interference with magnetic fields in medical imaging systems.

●Acid-Resistant Reactor Linings: Used in sulfuric acid production, these sheets withstand pH <1 environments for 5+ years without degradation.

Main Features:

1. High hardness

2. High heat resistance

3. Good wear resistance

4. High electrical resistivity

5. High corrosion resistance

Technical Parameters

Production process

1. Grind and crush the raw materials to be slurry or powder

2. se-different method to making the slurry or powder into semi-finished products

3. Put the semi-finished products into the kiln for dewaxing and sintering;

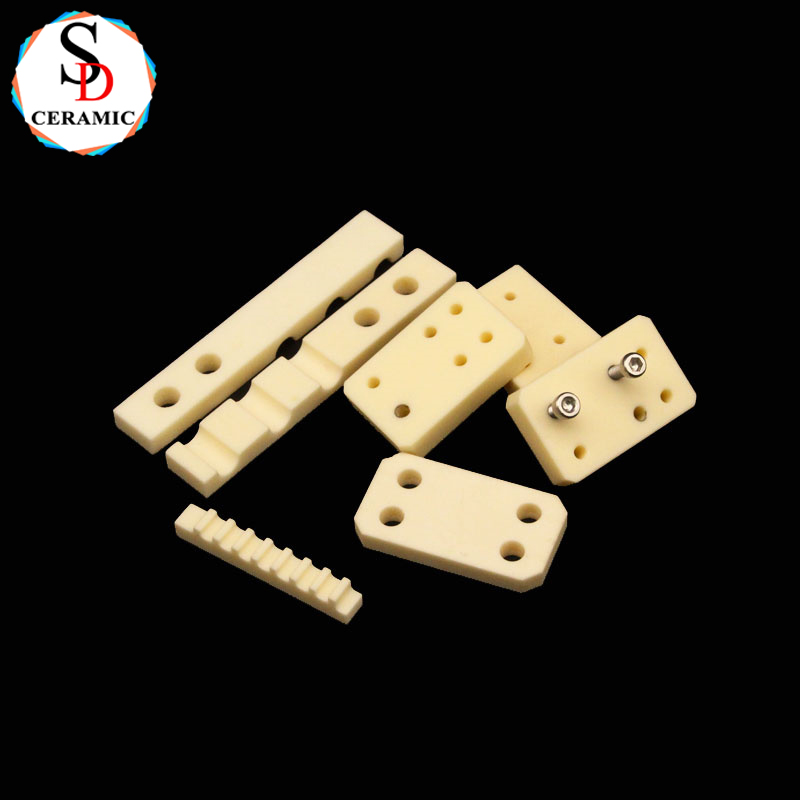

4. After forming and sintering, Ceramic Sleeves products can also be processed by subsequent CNC precision machining according to the drawing requirements. Then Q/C test.

5. Finally package Ceramic Sleeves by bubble paper or cartons and place it on tray for delivery

Certifications

Our customers

Packaging and shipping

Transport

FAQ：

Q: Do you have the products in stock?

A: Some standard produce have in stock, such as ceramic band heater insulator; bobbin heater insulator and ceramic connector. But it needs to check according to your requirement.

Q: How do you pack the goods?

A: Our standard packaging is carton, we can customize it as per your requirement as well.

Q: How many days do you finish the sample?

A: Usually 15 business days (Including 8days for making furnaces and 7days for producing samples)
