Shengda Ceramic delivers ultra-durable ceramic bolts with exceptional heat and wear resistance, perfect for demanding industrial applications. Custom sizes available—contact us now for high-performance solutions!
Product Introduction
Product Overview

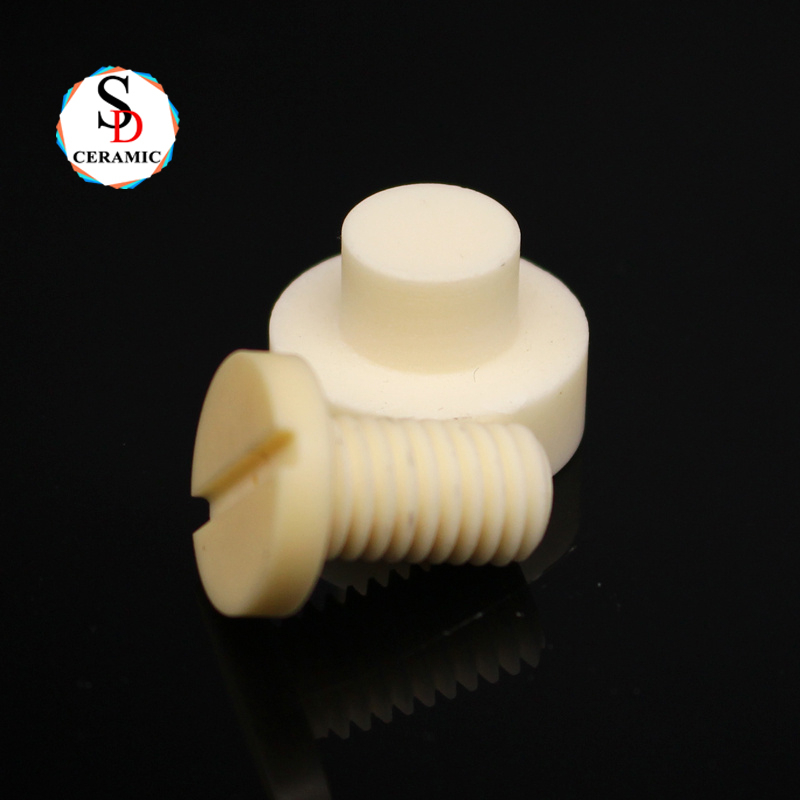

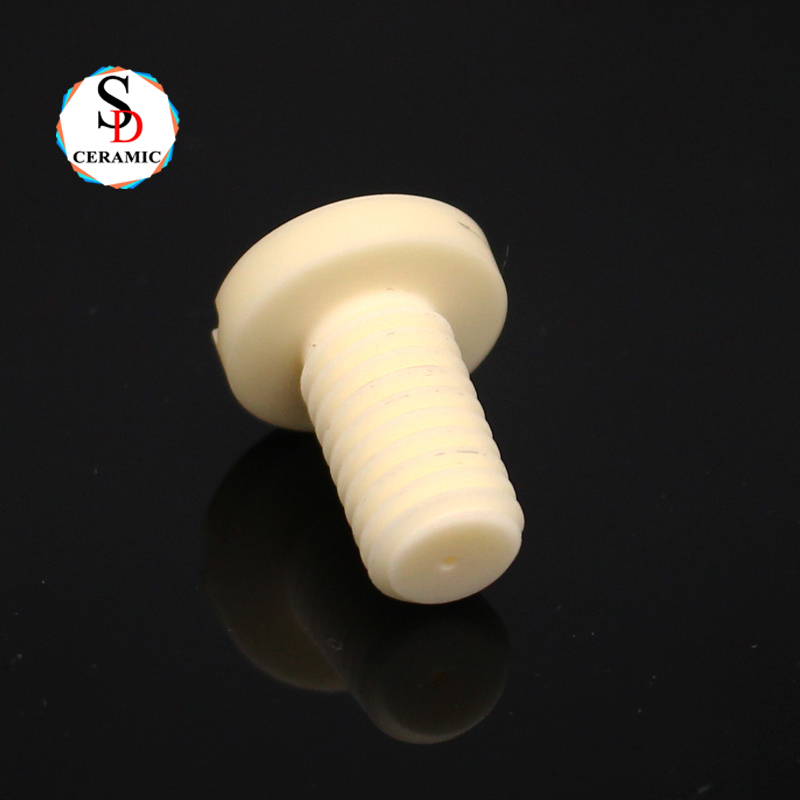

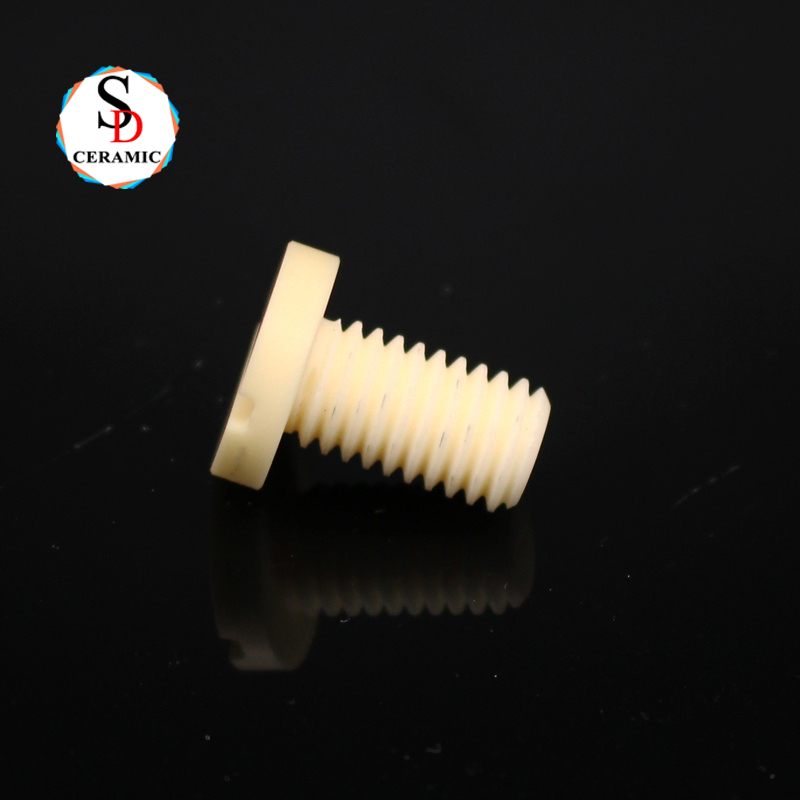

Our precision-machined alumina ceramic bolts represent the pinnacle of advanced ceramic fastening technology. Manufactured from 99% purity Al₂O₃, these high-performance ceramic components offer exceptional electrical insulation, corrosion resistance, and thermal stability - making them ideal replacements for metal fasteners in extreme environments. Proudly made in China with ISO-certified quality control.
Key Product Advantages
1. Excellent Electrical Insulation - Volume resistivity >10¹⁴ Ω·cm
2. Superior Corrosion Resistance - Immune to acids, alkalis, and solvents
3. High-Temperature Performance - Stable up to 1600°C (2912°F)
4. Exceptional Hardness - Mohs 9 rating for wear resistance
5. Non-Magnetic & Non-Sparking - Ideal for explosive environments
6. Lightweight Construction - 60% lighter than steel equivalents
Industry Applications
✔ Electronics & Semiconductor
✔ Chemical Processing
✔ High-Temperature Equipment
✔ Medical & Food Processing
✔ Aerospace & Defense
 |  |  |
Why Choose Our Ceramic Products?
✅ Factory Direct Pricing - Eliminate middleman markups
✅ ISO-Certified Manufacturing - Consistent quality assurance
✅ Rapid Prototyping - 2-3 week lead time for samples
✅ Technical Expertise - 30+ years in advanced ceramics
✅ Global Logistics - Reliable worldwide shipping
Technical Parameters
| Properties | Units | Cordierite Ceramic | Mullite Ceramic | 95%Alumina Ceramic | 99%Alumina Ceramic | Silicon Nitride | Zirconia Ceramic |
| Colour | Yellow | White | White | Light yellow | Black | White | |
| Density | g/cm3 | 1.9 | 2.6 | 3.6 | 3.8 | 3.2 | 6 |
| Flexural Strength | Mpa | 30 | 120 | 300 | 350 | 800 | 1100 |
| Compressive Strength | MPa | 350 | 500 | 2500 | 2800 | 2600 | 3000 |
| Modulus of Elasicity(20℃） | Gpa | 40 | 100 | 300 | 350 | 290 | 320 |
| Max Use Temperature | °C | 1200 | 1300 | 1400 | 1500 | 1300 | 1050 |
| Thermal Condutivity | W(m.K) | 1.3-1.8 | 2~6 | 20 | 30 | 25 | 3 |
| Thermal Expansion Cofficient | 10-6/°C | 2.5-3 | 2.5-3 | 7.5 | 8 | 3 | 10 |
| Thermal Shock Resistance | △T℃ | 300 | 150 | 140 | 150 | 600 | 250 |
| Dielectric Strength | KV/mm | - | - | 15 | 18 | 14 | 15 |
| Dielectric Constant | Er | 8 | 8 | 9 | 9.2 | 9 | 26 |
Production process
1. Grind and crush the raw materials to be slurry or powder
2. se-different method to making the slurry or powder into semi-finished products
3. Put the semi-finished products into the kiln for dewaxing and sintering;
4. After forming and sintering, Ceramic Sleeves products can also be processed by subsequent CNC precision machining according to the drawing requirements. Then Q/C test.
5. Finally package Ceramic Sleeves by bubble paper or cartons and place it on tray for delivery
Certifications
Packaging and shipping
FAQ
Q: Do you have the products in stock?
A: Some standard produce have in stock, such as ceramic band heater insulator; bobbin heater insulator and ceramic connector. But it needs to check according to your requirement.
Q: How do you pack the goods?
A: Our standard packaging is carton, we can customize it as per your requirement as well.
Q: How many days do you finish the sample?
A: Usually 15 business days (Including 8days for making furnaces and 7days for producing samples)
