► Place of Origin: Jiangsu, China
► Material: 99% alumina Ceramic
► Density: 3.9g/cm³
► Max use temperature: 1600℃
► Contract Manufacturing: OEM Service Offered
Product Introduction

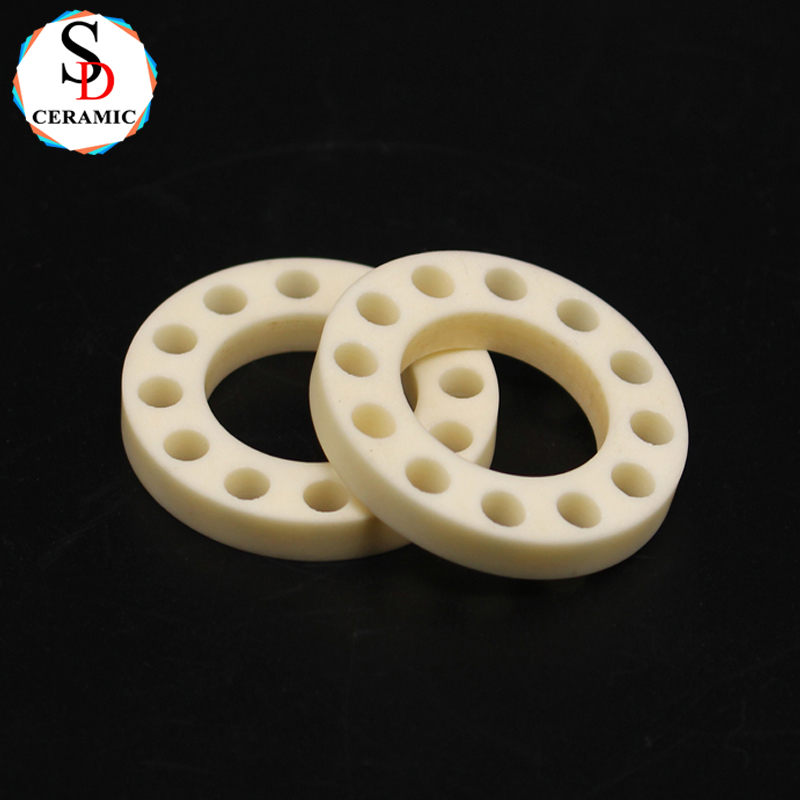

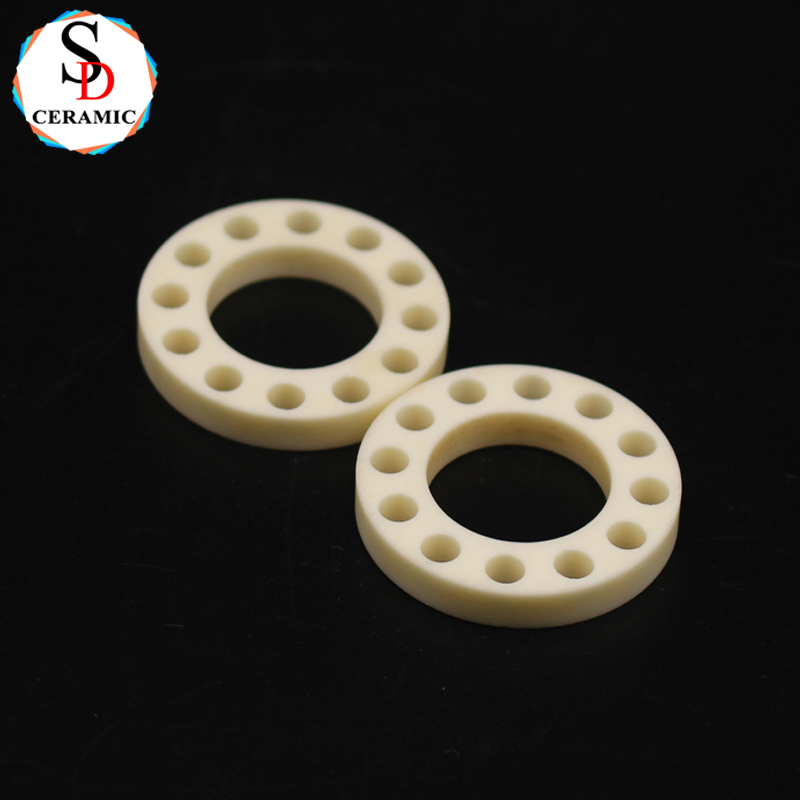

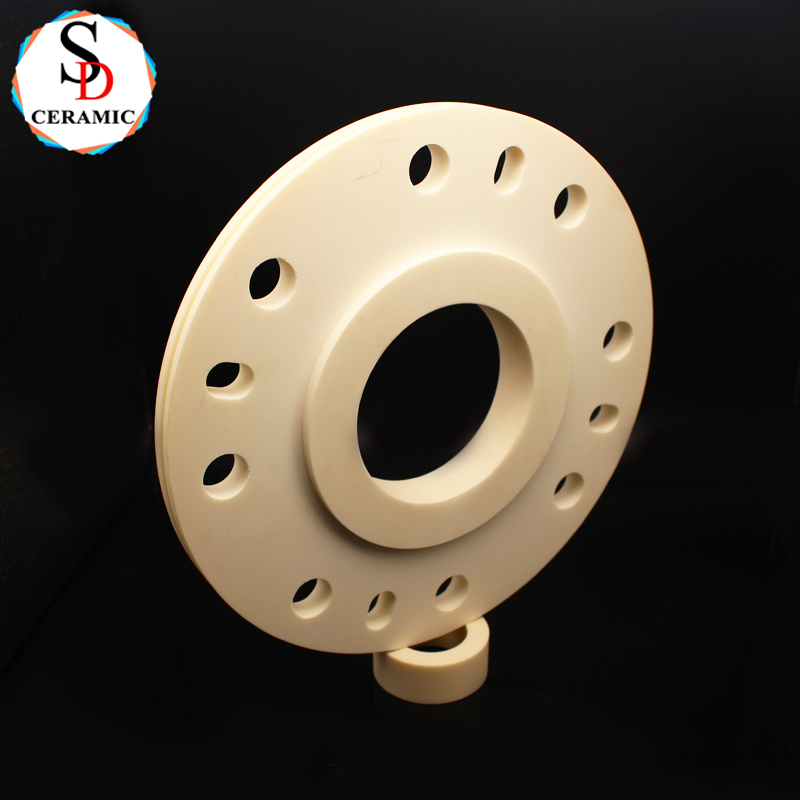

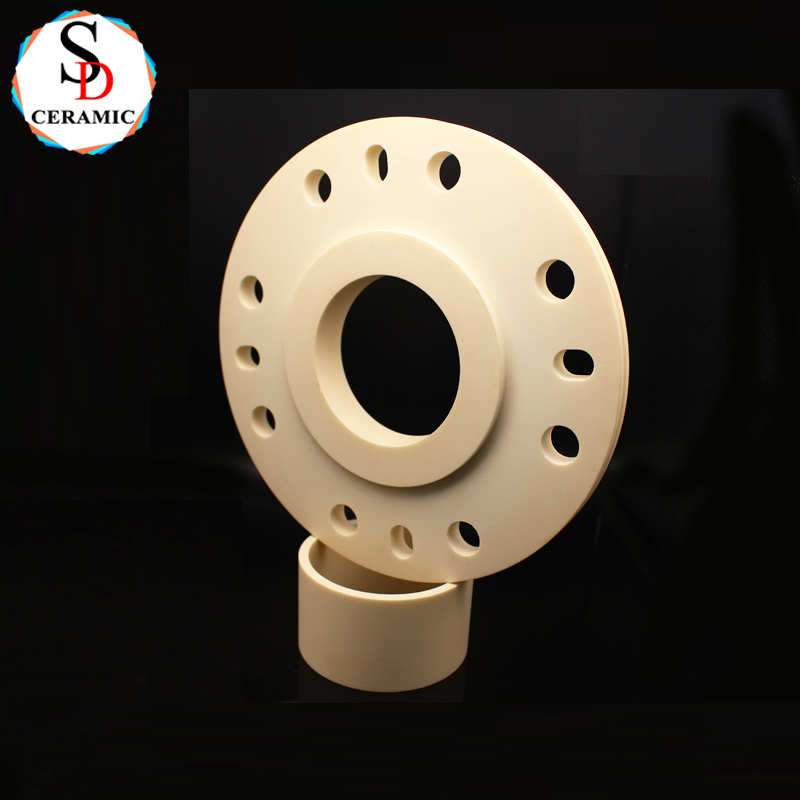

Our high-purity 99% alumina ceramic gasketsare precision-engineered components designed to provide superior sealing, insulation, and durability in the most demanding industrial environments. Featuring exceptional density, outstanding hardness, and excellent thermal and chemical resistance, these circular gaskets are the ideal solution for applications where traditional sealing materials fail.
| Key Product Advantages | Industry Applications | ||
▸ Ultra-High Density ▸ Exceptional Thermal Stability ▸ Superior Chemical Resistance ▸ Excellent Electrical Insulation ▸ High Mechanical Strength ▸ Customizable Dimensions | ▸ Semiconductor & Vacuum Equipment ▸ Chemical & Petrochemical Processing ▸ Power Generation & Energy ▸ Automotive & Aerospace ▸ Industrial Machinery & Furnaces |
Why Choose Our Ceramic Products?
✔ Factory Direct Pricing - Eliminate middleman markups
✔ ISO-Certified Manufacturing - Consistent quality assurance
✔ Rapid Prototyping - 2-3 week lead time for samples
✔ Technical Expertise - 30+ years in advanced ceramics
✔ Global Logistics - Reliable worldwide shipping
 |  |  |
Production Process
1. Grind and crush the raw materials to be slurry or powder.
2. se-different method to making the slurry or powder into semi-finished products.
3. Put the semi-finished products into the kiln for dewaxing and sintering.
4. After forming and sintering, Ceramic Sleeves products can also be processed by subsequent CNC precision machining according to the drawing requirements. Then Q/C test.
5. Finally package Ceramic Sleeves by bubble paper or cartons and place it on tray for delivery.
Company
 | Yixing Shengda Refractory Ceramic Co, Ltd. was established in Yixing City, China in 1995, witha production area of over 10,000㎡. lt is an enterprise specializing in the production of alumina ceramic,zirconia ceramic,slicon nitride, silicon carbide and other precision ceramic products. And we also produce ceramic band heaters, ceramic terminal block, cordierite and mullite ceramic parts an other ceramic products. |
Certifications
Technical Parameters
| Properties | Units | Cordierite Ceramic | Mullite Ceramic | 95%Alumina Ceramic | 99%Alumina Ceramic | Silicon Nitride | Zirconia Ceramic |
| Colour | Yellow | White | White | Light yellow | Black | White | |
| Density | g/cm3 | 1.9 | 2.6 | 3.6 | 3.8 | 3.2 | 6 |
| Flexural Strength | Mpa | 30 | 120 | 300 | 350 | 800 | 1100 |
| Compressive Strength | MPa | 350 | 500 | 2500 | 2800 | 2600 | 3000 |
| Modulus of Elasicity(20℃） | Gpa | 40 | 100 | 300 | 350 | 290 | 320 |
| Max Use Temperature | °C | 1200 | 1300 | 1400 | 1500 | 1300 | 1050 |
| Thermal Condutivity | W(m.K) | 1.3-1.8 | 2~6 | 20 | 30 | 25 | 3 |
| Thermal Expansion Cofficient | 10-6/°C | 2.5-3 | 2.5-3 | 7.5 | 8 | 3 | 10 |
| Thermal Shock Resistance | △T℃ | 300 | 150 | 140 | 150 | 600 | 250 |
| Dielectric Strength | KV/mm | - | - | 15 | 18 | 14 | 15 |
| Dielectric Constant | Er | 8 | 8 | 9 | 9.2 | 9 | 26 |
FAQ
Q: Do you have the products in stock?
A: Some standard produce have in stock, such as ceramic band heater insulator; bobbin heater insulator and ceramic connector. But it needs to check according to your requirement.
Q: How do you pack the goods?
A: Our standard packaging is carton, we can customize it as per your requirement as well.
Q: How many days do you finish the sample?
A: Usually 15 business days (Including 8days for making furnaces and 7days for producing samples)
