► Place of Origin: Jiangsu, China
► Material: 99% alumina Ceramic
► Density: 3.9g/cm³
► Max use temperature: 1600℃
► Contract Manufacturing: OEM Service Offered
Product Introduction

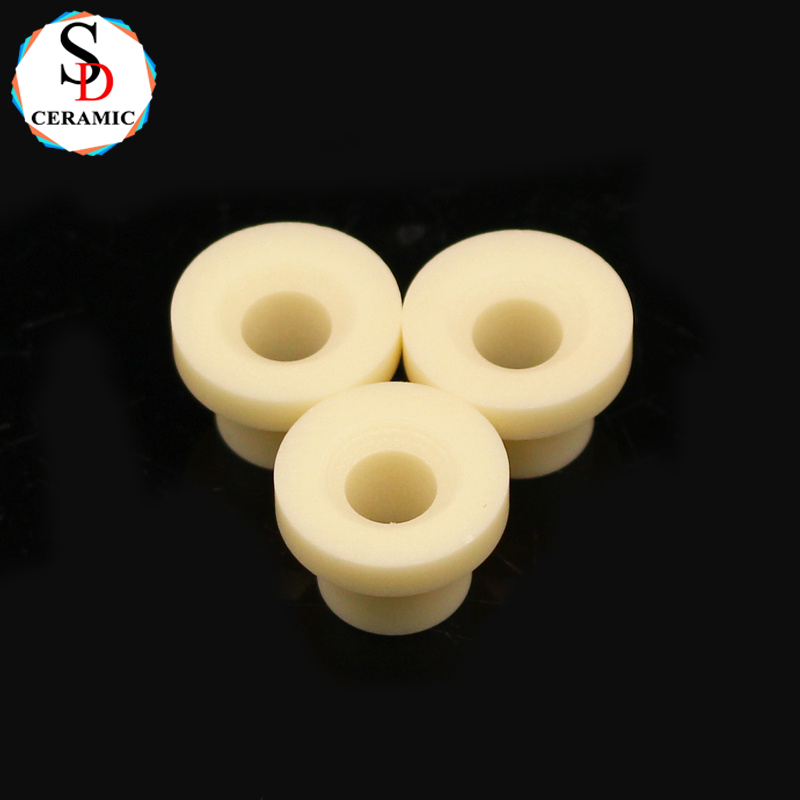

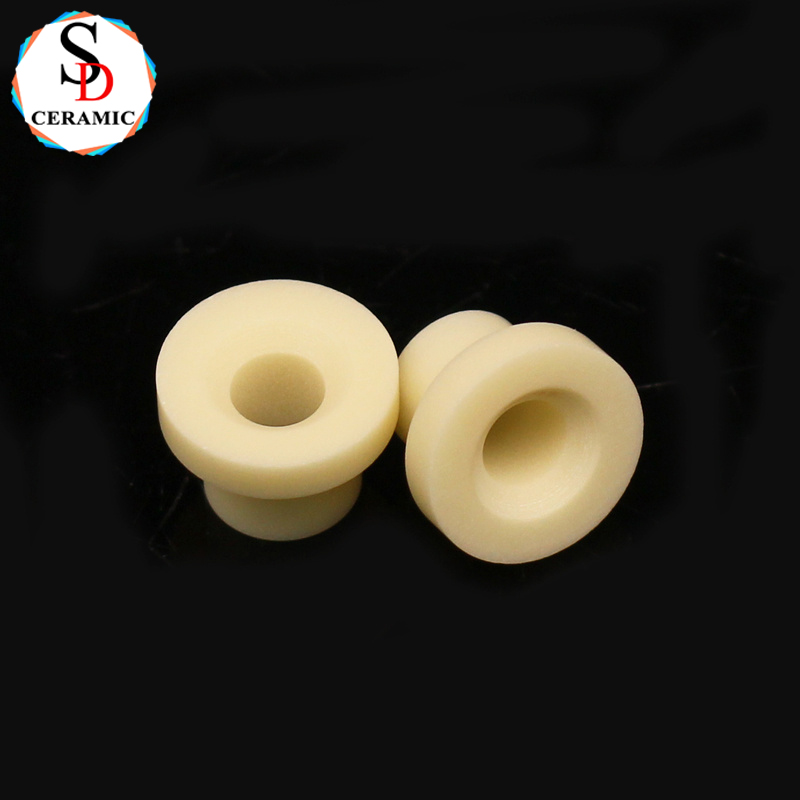

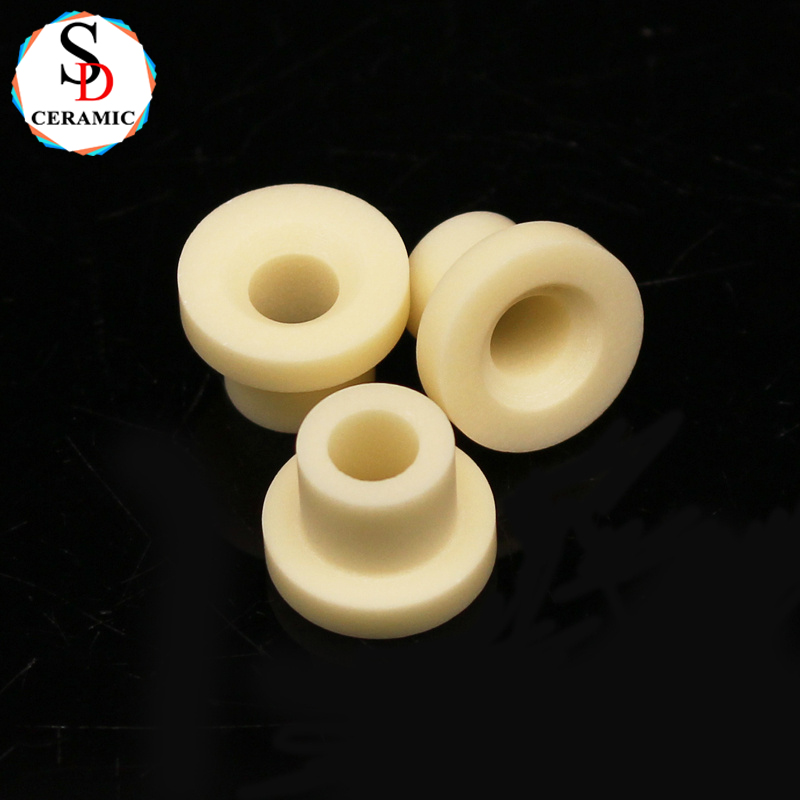

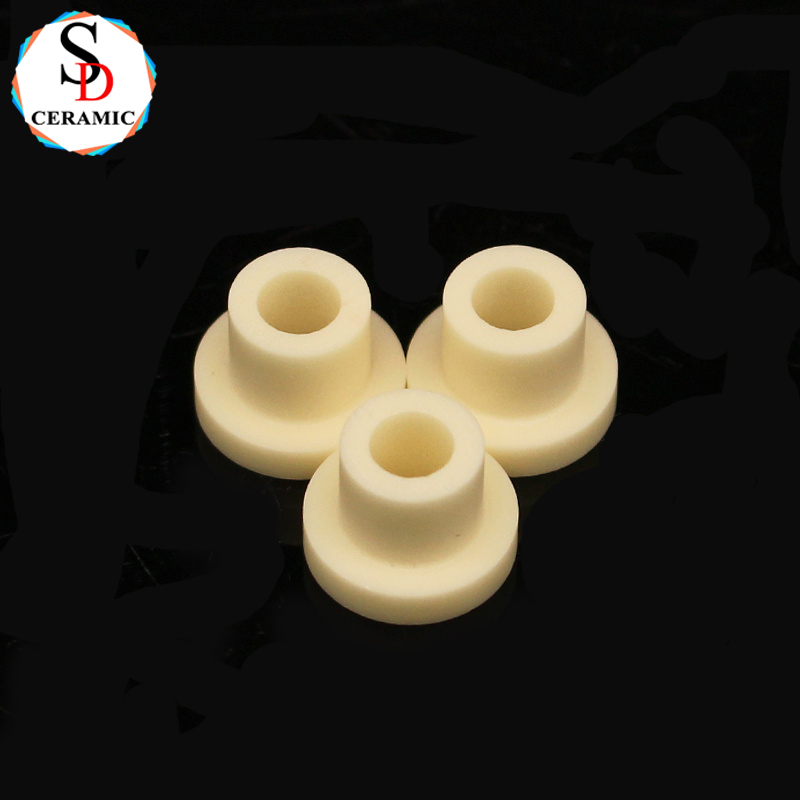

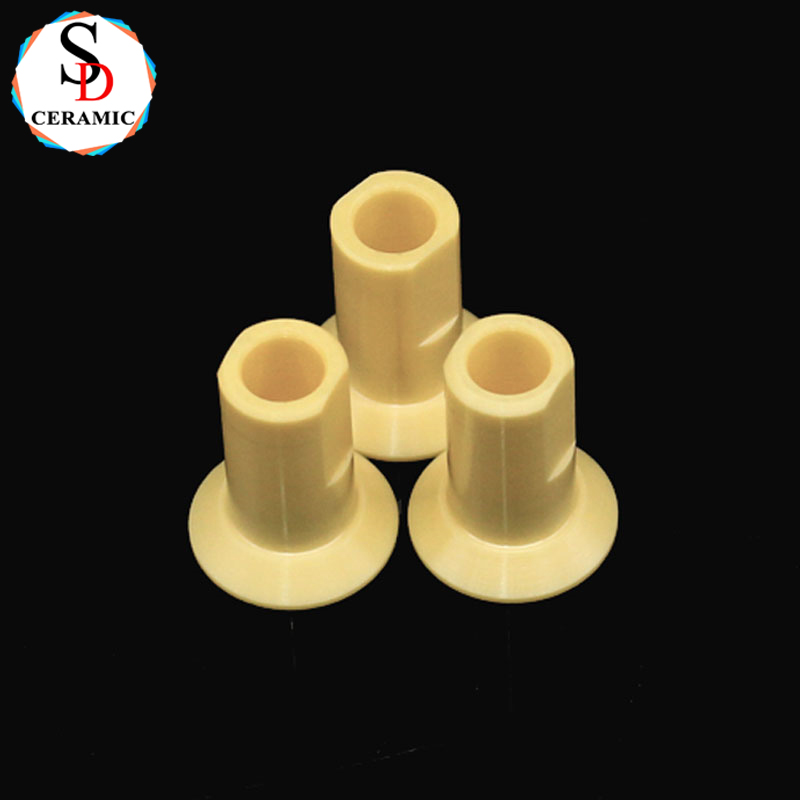

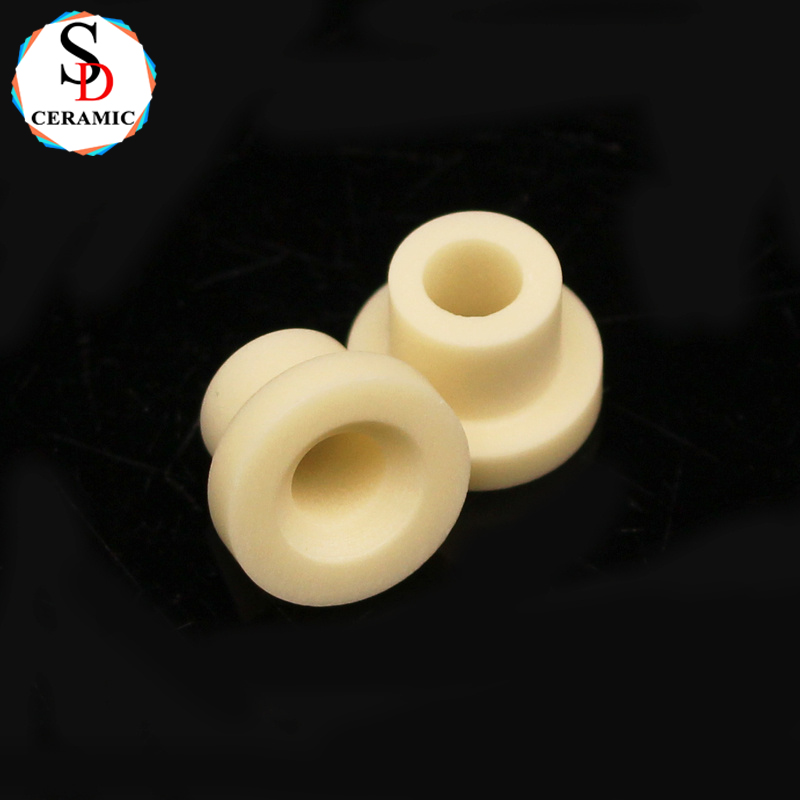

Our 99% Alumina Ceramic Flange Bushings represent the pinnacle of precision engineering for semiconductor manufacturing equipment. These advanced ceramic components combine exceptional wear resistance, ultra-high purity, and superior dimensional stability to meet the rigorous demands of modern semiconductor fabrication processes.
| Key Product Advantages | Industry Applications | ||
▸ Ultra-High Wear Resistance ▸ Semiconductor-Grade Purity ▸ Excellent Corrosion Resistance ▸ High-Temperature Stability ▸ Non-Contaminating ▸ Custom Engineering | ▸ Wafer Processing Equipment ▸ Vacuum and Plasma Systems ▸ Metrology and Inspection ▸ Fluid Handling Systems |
Why Choose Our Ceramic Products?
✔ Factory Direct Pricing - Eliminate middleman markups
✔ ISO-Certified Manufacturing - Consistent quality assurance
✔ Rapid Prototyping - 2-3 week lead time for samples
✔ Technical Expertise - 30+ years in advanced ceramics
✔ Global Logistics - Reliable worldwide shipping
 |  |  |
Production Process
1. Grind and crush the raw materials to be slurry or powder.
2. se-different method to making the slurry or powder into semi-finished products.
3. Put the semi-finished products into the kiln for dewaxing and sintering.
4. After forming and sintering, Ceramic Sleeves products can also be processed by subsequent CNC precision machining according to the drawing requirements. Then Q/C test.
5. Finally package Ceramic Sleeves by bubble paper or cartons and place it on tray for delivery.
Company
 | Yixing Shengda Refractory Ceramic Co, Ltd. was established in Yixing City, China in 1995, witha production area of over 10,000㎡. lt is an enterprise specializing in the production of alumina ceramic,zirconia ceramic,slicon nitride, silicon carbide and other precision ceramic products. And we also produce ceramic band heaters, ceramic terminal block, cordierite and mullite ceramic parts an other ceramic products. |
Certifications
Technical Parameters
| Properties | Units | Cordierite Ceramic | Mullite Ceramic | 95%Alumina Ceramic | 99%Alumina Ceramic | Silicon Nitride | Zirconia Ceramic |
| Colour | Yellow | White | White | Light yellow | Black | White | |
| Density | g/cm3 | 1.9 | 2.6 | 3.6 | 3.8 | 3.2 | 6 |
| Flexural Strength | Mpa | 30 | 120 | 300 | 350 | 800 | 1100 |
| Compressive Strength | MPa | 350 | 500 | 2500 | 2800 | 2600 | 3000 |
| Modulus of Elasicity(20℃） | Gpa | 40 | 100 | 300 | 350 | 290 | 320 |
| Max Use Temperature | °C | 1200 | 1300 | 1400 | 1500 | 1300 | 1050 |
| Thermal Condutivity | W(m.K) | 1.3-1.8 | 2~6 | 20 | 30 | 25 | 3 |
| Thermal Expansion Cofficient | 10-6/°C | 2.5-3 | 2.5-3 | 7.5 | 8 | 3 | 10 |
| Thermal Shock Resistance | △T℃ | 300 | 150 | 140 | 150 | 600 | 250 |
| Dielectric Strength | KV/mm | - | - | 15 | 18 | 14 | 15 |
| Dielectric Constant | Er | 8 | 8 | 9 | 9.2 | 9 | 26 |
FAQ
Q: Do you have the products in stock?
A: Some standard produce have in stock, such as ceramic band heater insulator; bobbin heater insulator and ceramic connector. But it needs to check according to your requirement.
Q: How do you pack the goods?
A: Our standard packaging is carton, we can customize it as per your requirement as well.
Q: How many days do you finish the sample?
A: Usually 15 business days (Including 8days for making furnaces and 7days for producing samples)
