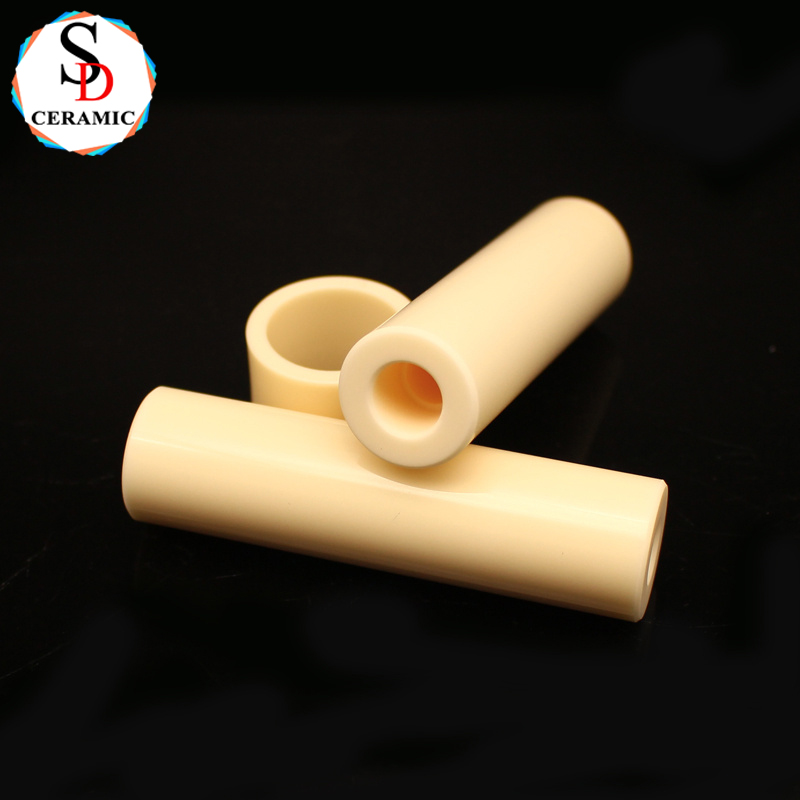

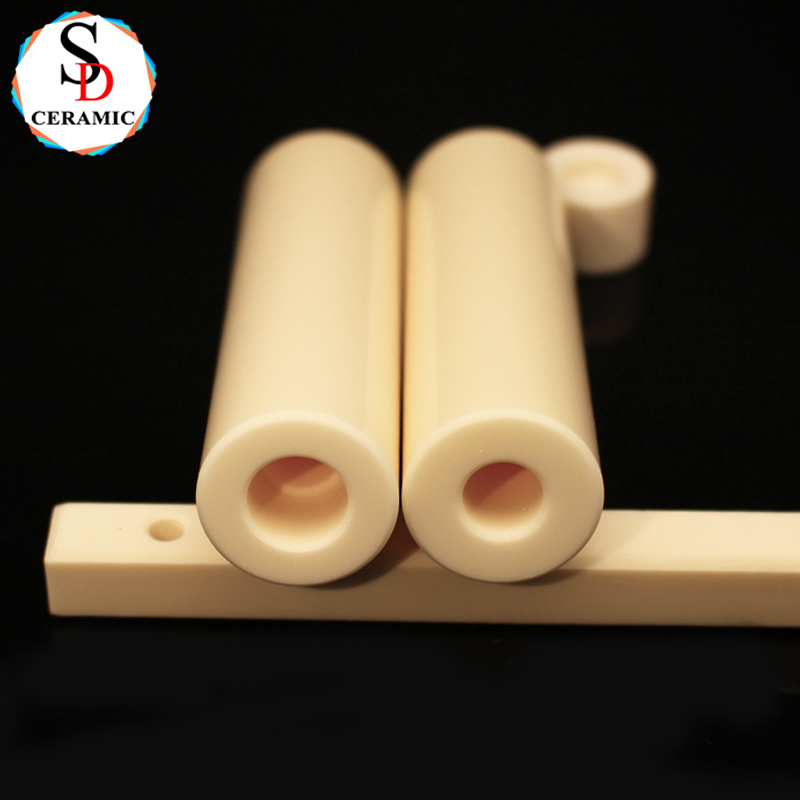

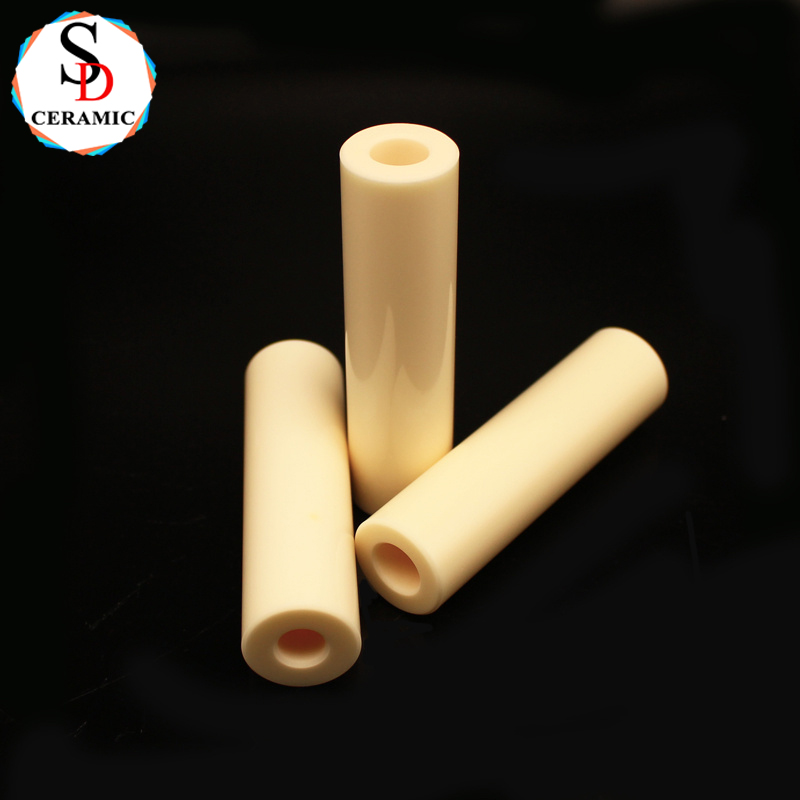

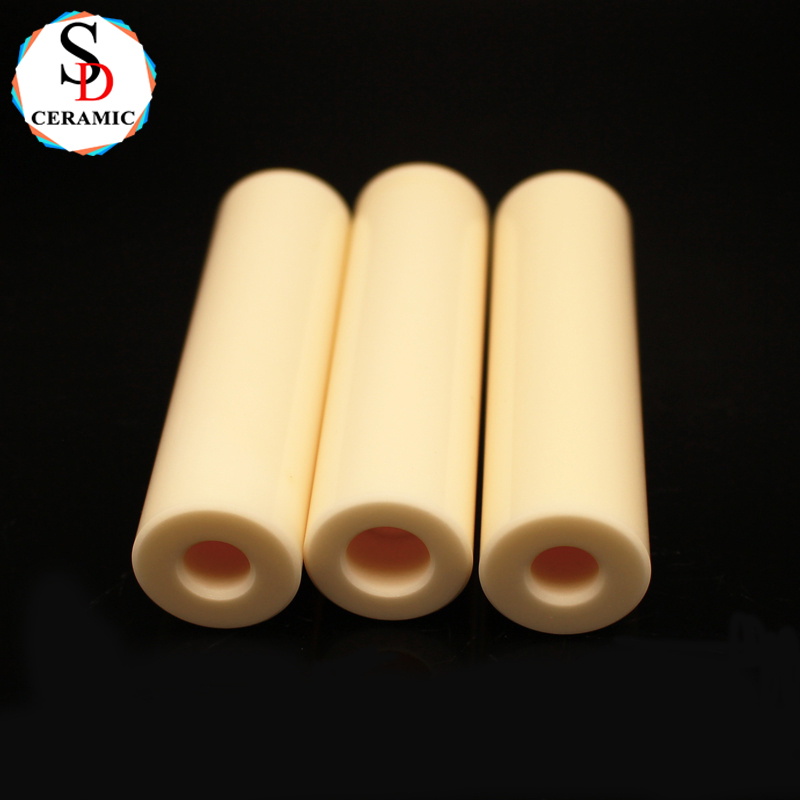

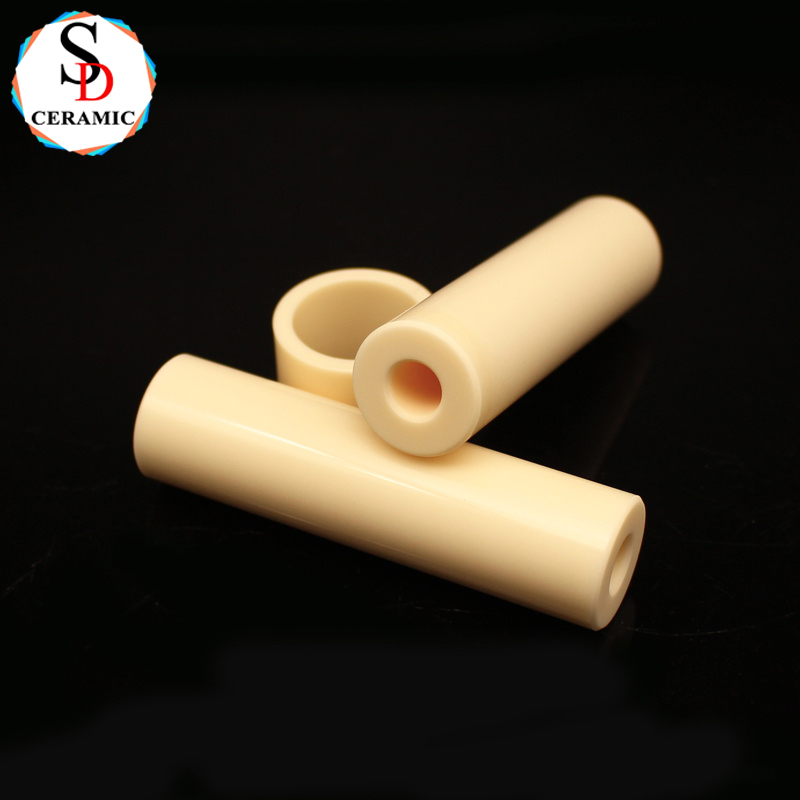

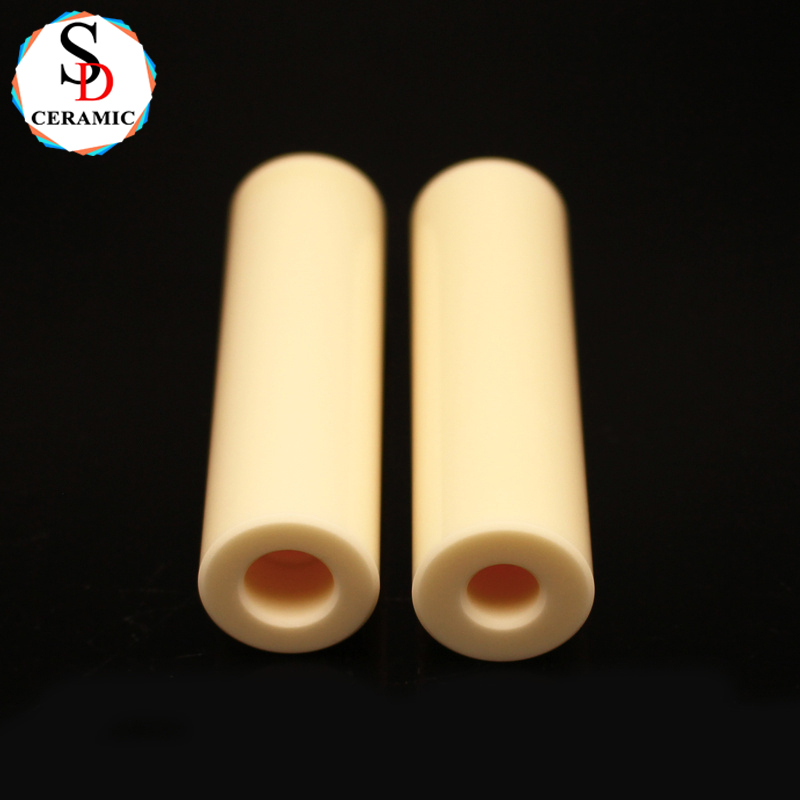

Good Polishing 99 Alumina Tubular Ceramic Tube with Factory Price

► Place of Origin: Jiangsu, China

► Material: 99% alumina

► Density: 3.9g/cm³

► Max use temperature: 1600℃

► Contract Manufacturing: OEM Service Offered


Product Introduction

Our 99% alumina ceramic tubulars represent the pinnacle of advanced ceramic engineering, combining exceptional mechanical strength, outstanding thermal stability, and superior surface polishing for demanding industrial applications. Manufactured with precision grinding and polishing technologies, these ceramic tubular components deliver unmatched performance in high-temperature, corrosive, and wear-intensive environments.



Key Product AdvantagesIndustry Applications

Superior Surface Finish

Exceptional Thermal Resistance

Excellent Mechanical Strength

Outstanding Corrosion Resistance

High Electrical Insulation

Factory-Direct Competitive Pricing

Semiconductor Manufacturing

▸ Thermal Processing & Heat Treatment

Chemical Processing

Mechanical & Industrial Engineering

▸ Energy & Environmental



Good Polishing 99 Alumina Tubular Ceramic Tube with Factory PriceGood Polishing 99 Alumina Tubular Ceramic Tube with Factory PriceGood Polishing 99 Alumina Tubular Ceramic Tube with Factory Price


Production process

1. Grind and crush the raw materials to be slurry or powder

2. se-different method to making the slurry or powder into semi-finished products

3. Put the semi-finished products into the kiln for dewaxing and sintering;

4. After forming and sintering, Ceramic Sleeves products can also be processed by subsequent CNC precision machining according to the drawing requirements. Then Q/C test.

5. Finally package Ceramic Sleeves by bubble paper or cartons and place it on tray for delivery


95 alumina substrate


Company

Strong Heat Resistance Al2o3 Alumina Ceramic Boat Crucible for Melting

Yixing Shengda Refractory Ceramic Co, Ltd. was established in Yixing City, China in 1995, witha production area of over 10,000m2. lt is an enterprise specializing in the production of aluminaceramic,zirconia ceramic,slicon nitride, silicon carbide and other precision ceramic products.

And we also produce ceramic band heaters, ceramic terminal block, cordierite and mullite ceramic parts an other ceramic products.


Certifications

95 alumina substrate


Packaging and shipping

95 alumina substrate


Technical Parameters

PropertiesUnitsCordierite Ceramic
Mullite
Ceramic
95%Alumina Ceramic
99%Alumina Ceramic
Silicon Nitride
Zirconia Ceramic
Colour

YellowWhiteWhiteLight yellowBlackWhite
Densityg/cm31.92.63.63.83.26
Flexural StrengthMpa301203003508001100
Compressive StrengthMPa3505002500280026003000
Modulus of Elasicity(20℃)Gpa40100300350290320
Max Use Temperature°C120013001400150013001050
Thermal CondutivityW(m.K)1.3-1.82~62030253
Thermal Expansion Cofficient10-6/°C2.5-32.5-37.58310
Thermal Shock Resistance△T℃300150140150600250
Dielectric StrengthKV/mm--15181415
Dielectric ConstantEr8899.2926

Promotional Good Quality 99 Alumina Ceramic Pipe Tubes Insulated Thermocouple Al2o3 Ceramic Stick


FAQ

Q: Do you have the products in stock?

A: Some standard produce have in stock, such as ceramic band heater insulator; bobbin heater insulator and ceramic connector. But it needs to check according to your requirement.

Q: How do you pack the goods?

A: Our standard packaging is carton, we can customize it as per your requirement as well.

Q: How many days do you finish the sample?

A: Usually 15 business days (Including 8days for making furnaces and 7days for producing samples)
