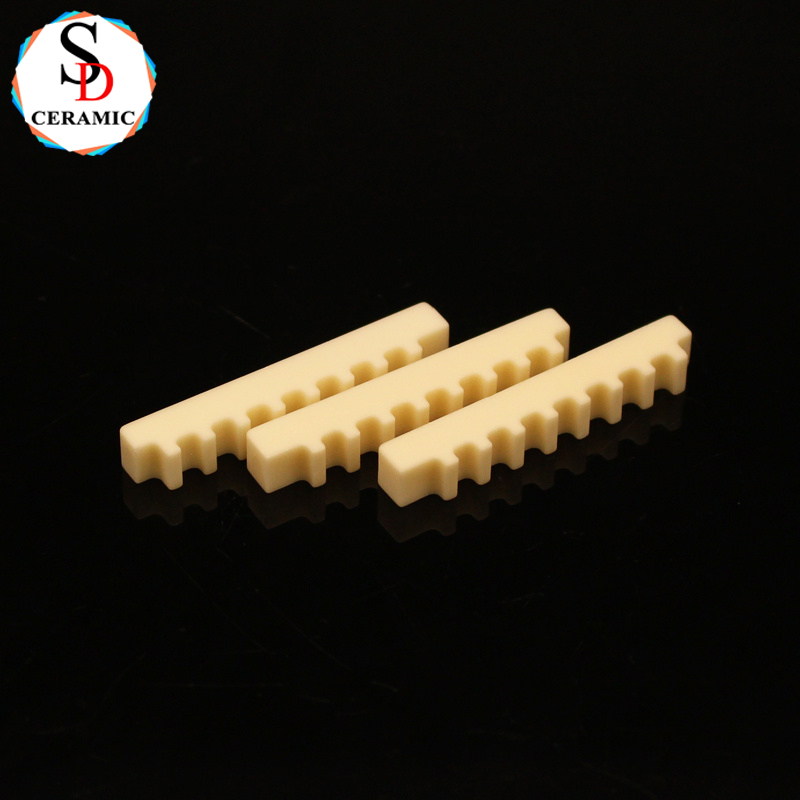

Factory Custom 99 Alumina Ceramic Strip Bar for Industrial Use

Shengda Ceramic delivers ultra-durable ceramic strips with exceptional heat and wear resistance, perfect for demanding industrial applications. Custom sizes available—contact us now for high-performance solutions!

Inquire Now

Product Introduction

Product Overview

Our 99% alumina ceramic strips and bars represent the pinnacle of advanced ceramic engineering, offering exceptional electrical insulation, outstanding wear resistance, and superior thermal stability for the most challenging industrial applications. Manufactured with 99% pure Al₂O₃, these precision components deliver unmatched performance in high-temperature, high-wear, and electrically demanding environments.

Key Product Advantages

1. Excellent Electrical Insulation - Volume resistivity >10¹⁴ Ω·cm

2. Exceptional Mechanical Strength - Flexural strength 300-400 MPa

3. High-Temperature Resistance - Stable up to 1600°C (2912°F)

4. Superior Wear & Abrasion Resistance - Mohs hardness of 9

5. Chemical Inertness - Resists acids, alkalis and corrosive agents

6. Custom Dimensions - Tailored lengths, widths and thicknesses

Industry Applications

✔ Electrical & Electronics Industry

✔ Industrial Machinery & Automation

✔ Thermal Processing & Furnace Systems

✔ Automotive & Aerospace

✔ Laboratory & Research Equipment

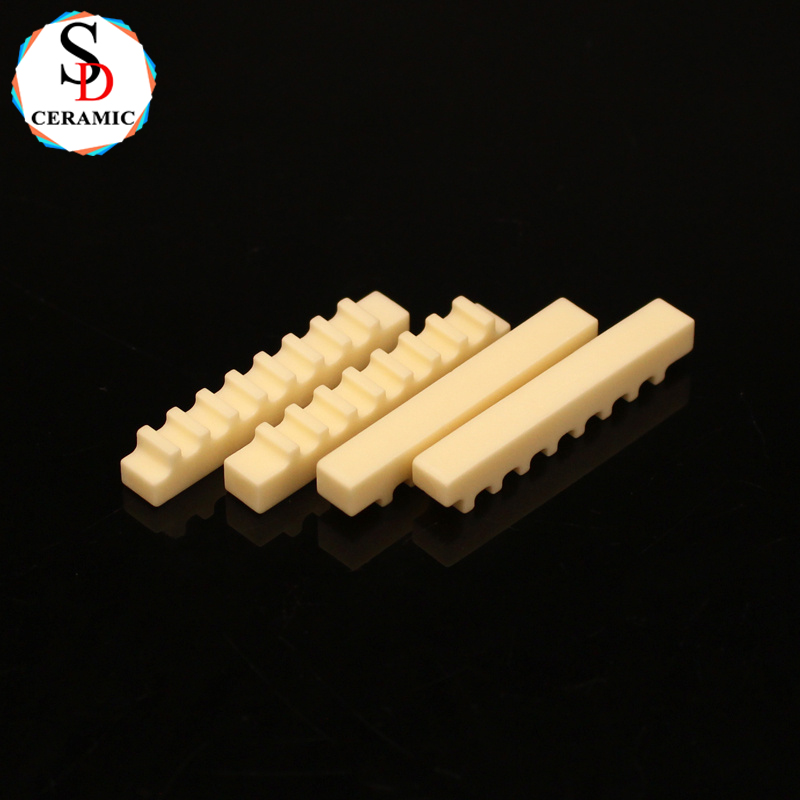

Factory Custom 99 Alumina Ceramic Strip Bar for Industrial Use

Why Choose Our Ceramic Products?

✅ Factory Direct Pricing - Eliminate middleman markups

✅ ISO-Certified Manufacturing - Consistent quality assurance

✅ Rapid Prototyping - 2-3 week lead time for samples

✅ Technical Expertise - 30+ years in advanced ceramics

✅ Global Logistics - Reliable worldwide shipping

Technical Parameters

Properties	Units	Cordierite Ceramic	Mullite Ceramic	95%Alumina Ceramic	99%Alumina Ceramic	Silicon Nitride	Zirconia Ceramic
Colour		Yellow	White	White	Light yellow	Black	White
Density	g/cm3	1.9	2.6	3.6	3.8	3.2	6
Flexural Strength	Mpa	30	120	300	350	800	1100
Compressive Strength	MPa	350	500	2500	2800	2600	3000
Modulus of Elasicity(20℃）	Gpa	40	100	300	350	290	320
Max Use Temperature	°C	1200	1300	1400	1500	1300	1050
Thermal Condutivity	W(m.K)	1.3-1.8	2~6	20	30	25	3
Thermal Expansion Cofficient	10-6/°C	2.5-3	2.5-3	7.5	8	3	10
Thermal Shock Resistance	△T℃	300	150	140	150	600	250
Dielectric Strength	KV/mm	-	-	15	18	14	15
Dielectric Constant	Er	8	8	9	9.2	9	26

Production process

1. Grind and crush the raw materials to be slurry or powder

2. se-different method to making the slurry or powder into semi-finished products

3. Put the semi-finished products into the kiln for dewaxing and sintering;

4. After forming and sintering, Ceramic Sleeves products can also be processed by subsequent CNC precision machining according to the drawing requirements. Then Q/C test.

5. Finally package Ceramic Sleeves by bubble paper or cartons and place it on tray for delivery

95 alumina substrate

Certifications

95 alumina substrate

Packaging and shipping

95 alumina substrate

FAQ

Q: Do you have the products in stock?

A: Some standard produce have in stock, such as ceramic band heater insulator; bobbin heater insulator and ceramic connector. But it needs to check according to your requirement.

Q: How do you pack the goods?

A: Our standard packaging is carton, we can customize it as per your requirement as well.

Q: How many days do you finish the sample?

A: Usually 15 business days (Including 8days for making furnaces and 7days for producing samples)
