► Place of Origin: Jiangsu, China
► Material: 99% alumina
► Density: 3.9g/cm³
► Max use temperature: 1600℃
► Contract Manufacturing: OEM Service Offered
Product Introduction

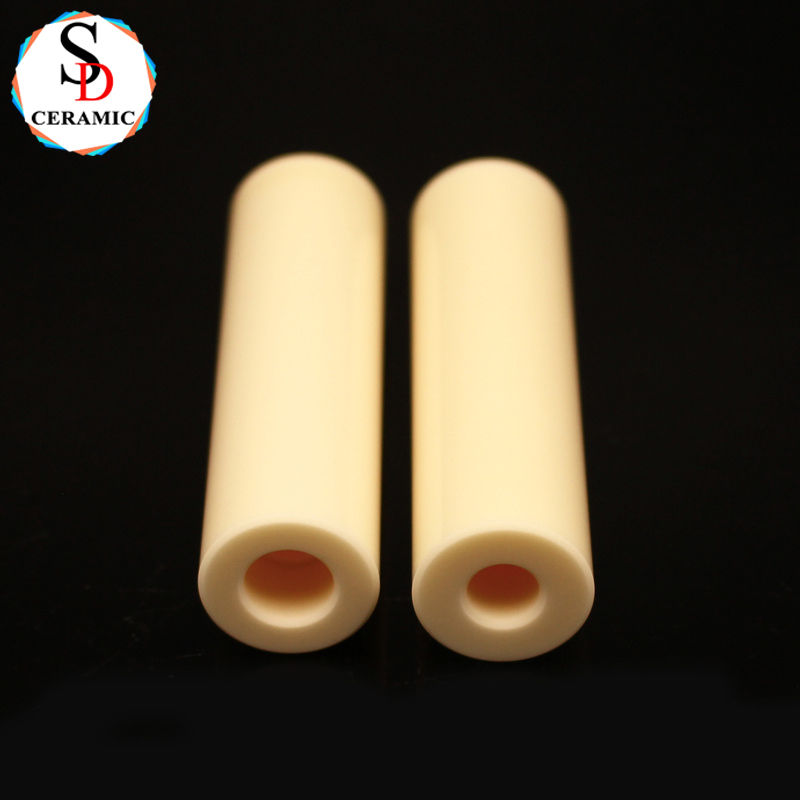

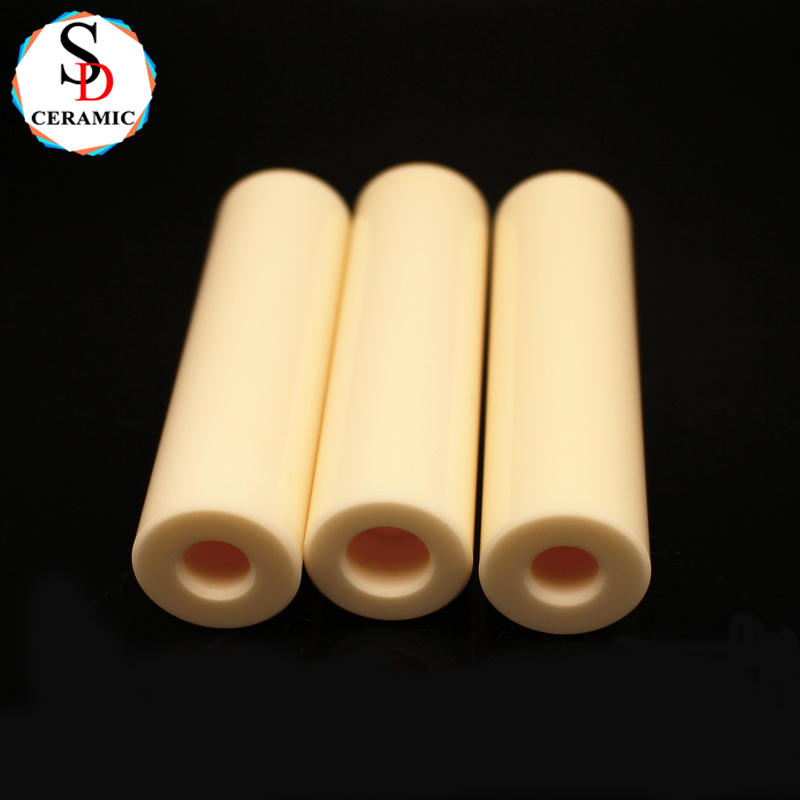

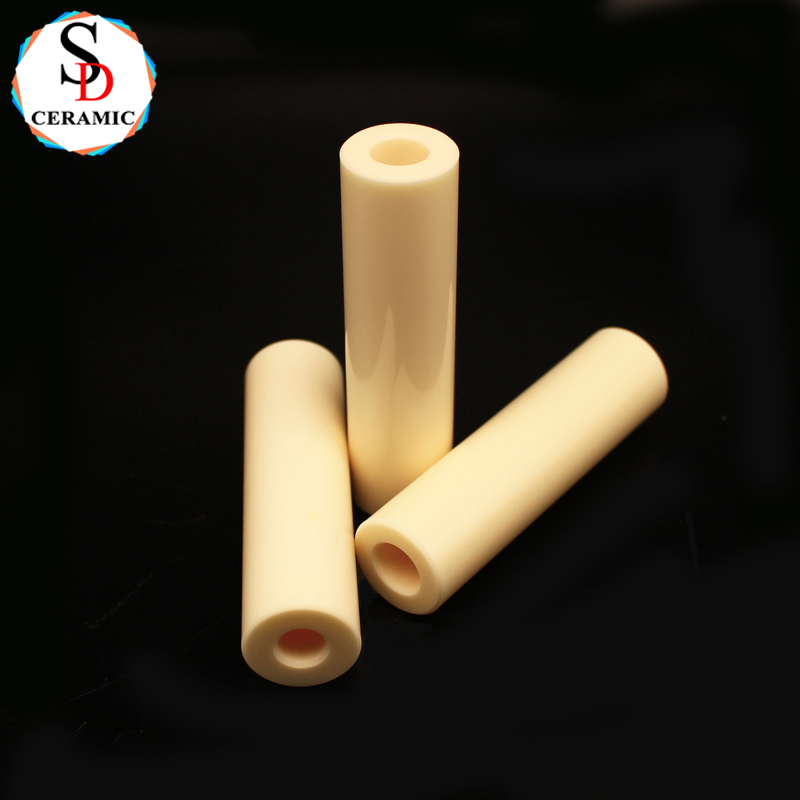

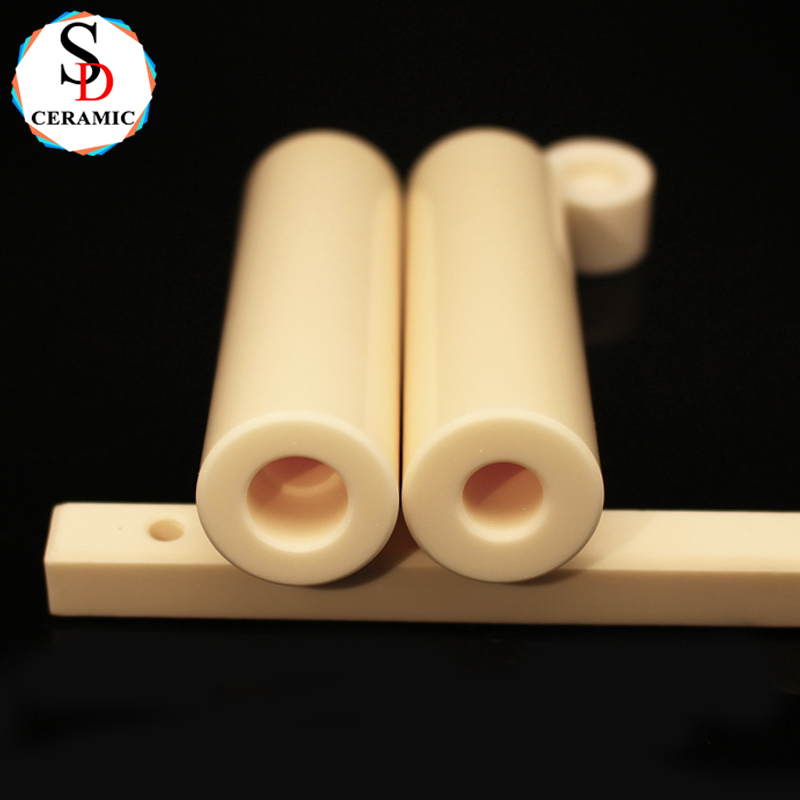

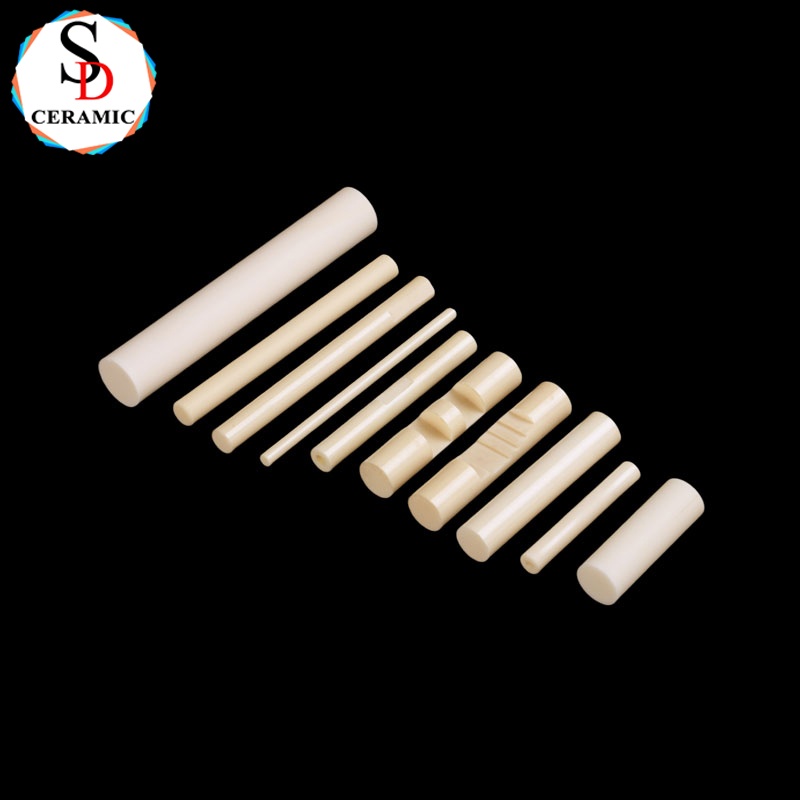

Our alumina ceramic heat pipes and tubes represent the cutting edge in high-temperature thermal management technology. Engineered from 99% pure Al₂O₃, these advanced ceramic components deliver unmatched thermal stability, corrosion resistance, and structural integrity in applications up to 1600°C (2912°F). Ideal for industries requiring reliable heat transfer in aggressive environments, our ceramic heat pipes outperform traditional metal alternatives with 3-5x longer service life.
| Key Product Advantages | Industry Applications | ||
▸ Ultra-High Temperature Resistance ▸ Exceptional Thermal Conductivity ▸ Corrosion & Oxidation Proof ▸ Low Thermal Expansion ▸ Electrical Insulation ▸ Custom Configurations | ▸ High-Temperature Furnaces & Kilns ▸ Semiconductor & Electronics Manufacturing ▸ Energy & Power Generation▸ Chemical & Petrochemical Processing ▸ Aerospace & Defense |
 |  |  |
Poduction process
1. Grind and crush the raw materials to be slurry or powder
2. se-different method to making the slurry or powder into semi-finished products
3. Put the semi-finished products into the kiln for dewaxing and sintering;
4. After forming and sintering, Ceramic Sleeves products can also be processed by subsequent CNC precision machining according to the drawing requirements. Then Q/C test.
5. Finally package Ceramic Sleeves by bubble paper or cartons and place it on tray for delivery
Company
 |
Yixing Shengda Refractory Ceramic Co, Ltd. was established in Yixing City, China in 1995, witha production area of over 10,000m2. lt is an enterprise specializing in the production of aluminaceramic,zirconia ceramic,slicon nitride, silicon carbide and other precision ceramic products.
And we also produce ceramic band heaters, ceramic terminal block, cordierite and mullite ceramic parts an other ceramic products.
Certifications
Packaging and shipping

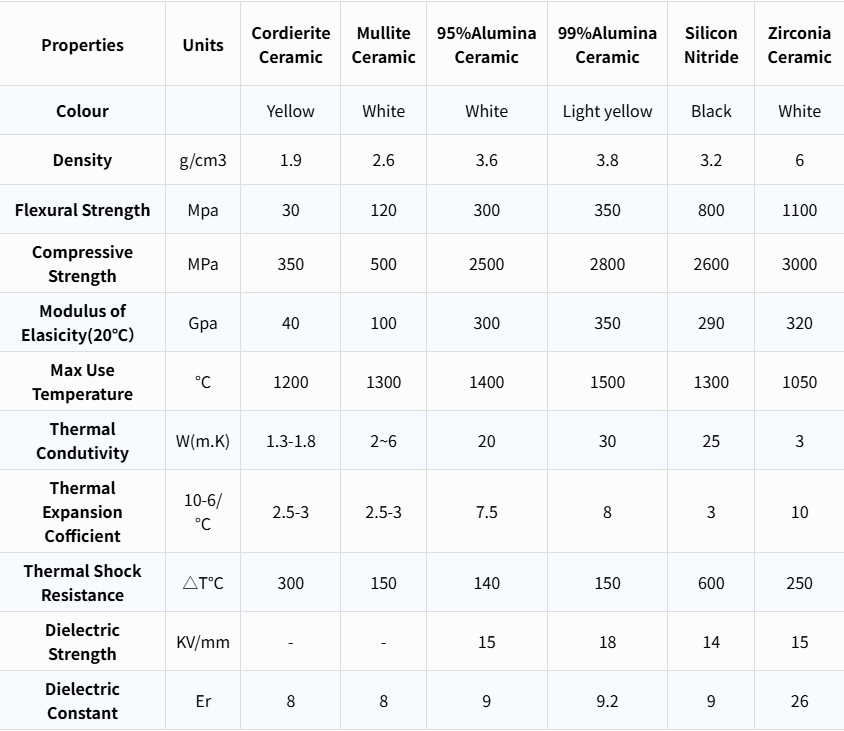

Technical Parameters
| Properties | Units | Cordierite Ceramic | Mullite Ceramic | 95%Alumina Ceramic | 99%Alumina Ceramic | Silicon Nitride | Zirconia Ceramic |
| Colour | Yellow | White | White | Light yellow | Black | White | |
| Density | g/cm3 | 1.9 | 2.6 | 3.6 | 3.8 | 3.2 | 6 |
| Flexural Strength | Mpa | 30 | 120 | 300 | 350 | 800 | 1100 |
| Compressive Strength | MPa | 350 | 500 | 2500 | 2800 | 2600 | 3000 |
| Modulus of Elasicity(20℃） | Gpa | 40 | 100 | 300 | 350 | 290 | 320 |
| Max Use Temperature | °C | 1200 | 1300 | 1400 | 1500 | 1300 | 1050 |
| Thermal Condutivity | W(m.K) | 1.3-1.8 | 2~6 | 20 | 30 | 25 | 3 |
| Thermal Expansion Cofficient | 10-6/°C | 2.5-3 | 2.5-3 | 7.5 | 8 | 3 | 10 |
| Thermal Shock Resistance | △T℃ | 300 | 150 | 140 | 150 | 600 | 250 |
| Dielectric Strength | KV/mm | - | - | 15 | 18 | 14 | 15 |
| Dielectric Constant | Er | 8 | 8 | 9 | 9.2 | 9 | 26 |
FAQ
Q: Do you have the products in stock?
A: Some standard produce have in stock, such as ceramic band heater insulator; bobbin heater insulator and ceramic connector. But it needs to check according to your requirement.
Q: How do you pack the goods?
A: Our standard packaging is carton, we can customize it as per your requirement as well.
Q: How many days do you finish the sample?
A: Usually 15 business days (Including 8days for making furnaces and 7days for producing samples)
Request A Quote Today
Whether is a product enquiry or technical help, please send messager here, our team will respond within 8 hours.

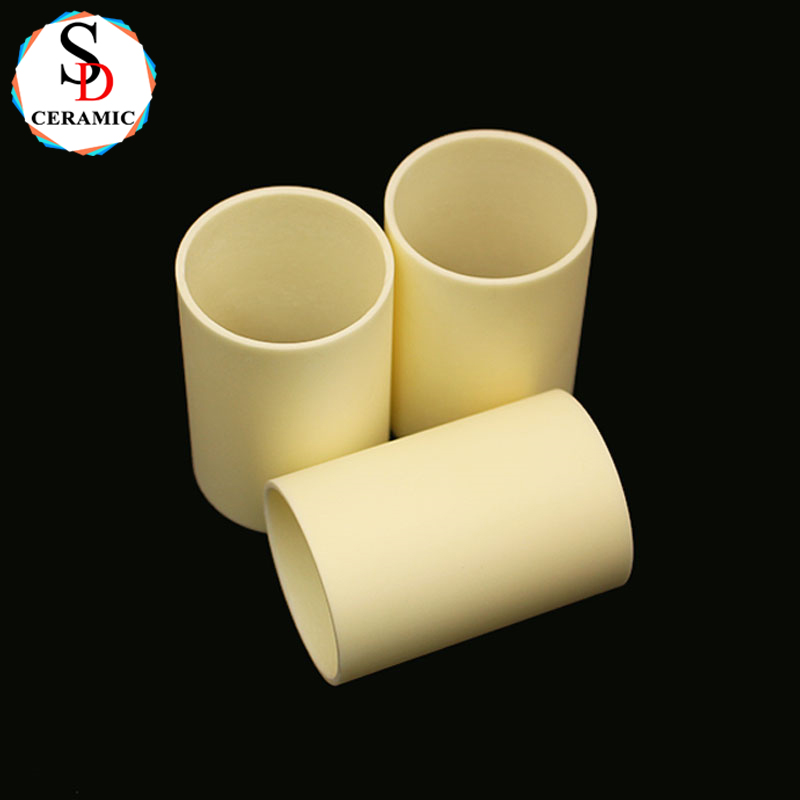

Subject : High Temperature Resistant Ceramic Heat Pipe Al2O3 Tube
